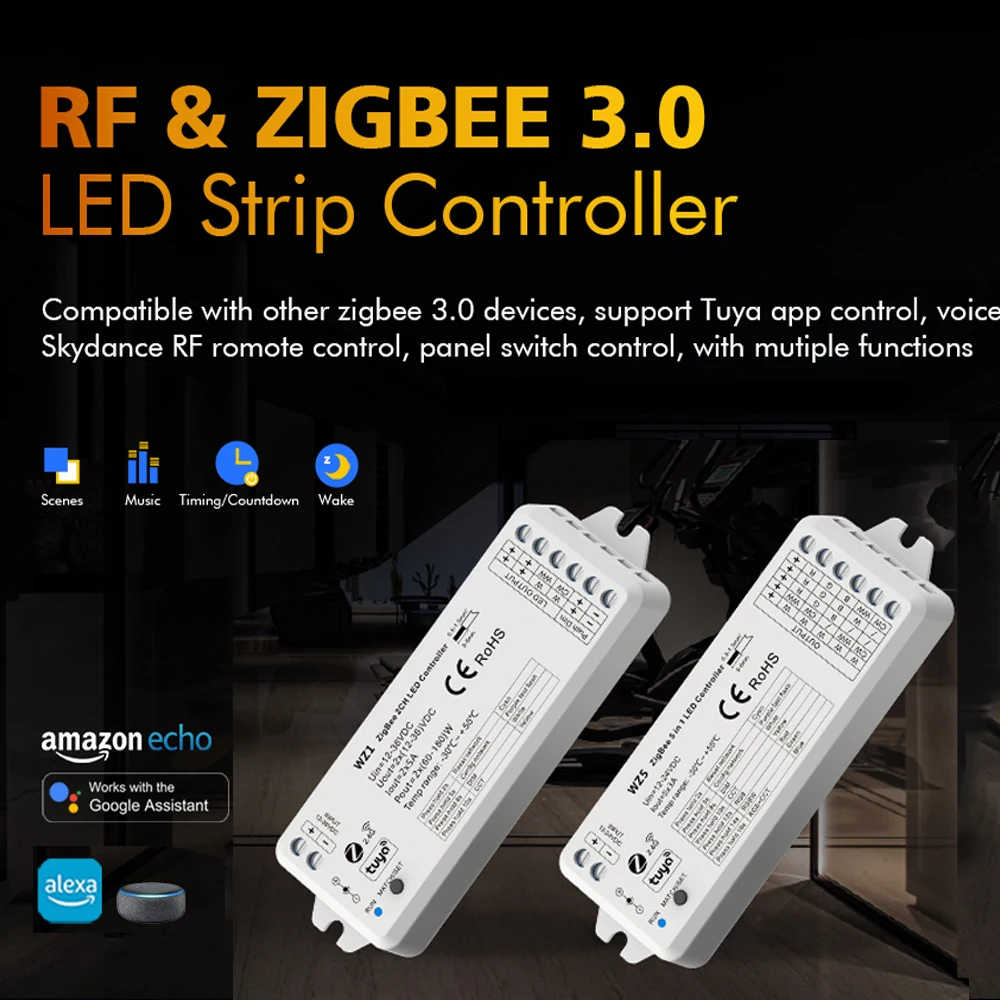

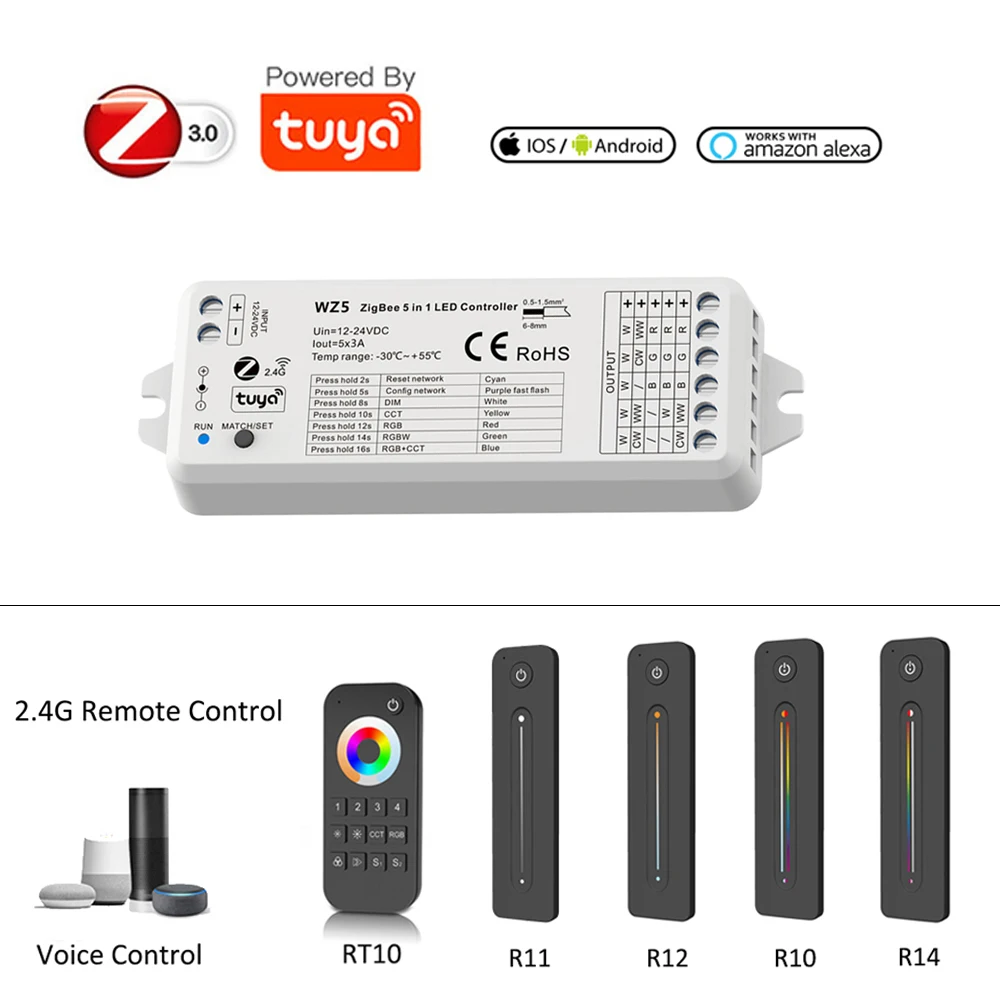

Tuya Zigbee Led Inteligente Controlador Dc12v 24v Dim Rgb Rgbw Rgbww Rgbcw Rgbcw Rgbcw Tira 2.4g rf Remoto Google Echo Além de Controle de Voz
R$ 148,33
DÚVIDAS?
Envie um email para:
Controladores RGB
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Características | Tuya Zigbee |
| Número do Modelo | WZ5 |
| Freqüência de Oscilação | NO |
| Modo de Conexão | Tuya Zigbee |
| Garantia | ONE Year |
| Tensão | 12-24v |
| Material | ABS |
| Voltagem | 5A |
| Fonte de Energia | DC |
| Potência Máx. de Carga | 180w |
| Distância Remota | Anywhere |
| Luzes Adequadas | FOR RGB Rgbw Rgbcct LED Strip |
| Método Controlado | APP Control, voice Control, remote Controller |
| Nome da Marca | Cenfaya |
| Origem | CN (origem) |
| Tipo de Item | Controlador RGB |
| Feature1 | APP Control |
| Feature2 | Voice Control |
| Feature3 | FOR 5050 5630 3528 2538 LED Strip |
| Feature4 | LED Controller 12V |
| Feature5 | Dc12v-24v |
Compatível com faixa LED abaixo
? Single Color LED Strip Light
? Dual White (WW+CW) LED Strip Light
? RGB LED Strip Light
? RGB+White / RGB + Cool White LED Strip Light
? RGB +WW+CW (=RGBCCT) LED Strip Light
support Remote Control,
support APP Control ( tuya/smart life) ,need to pairwith TUYA ZIGBEE HUB.
support Voice Control
Work with 2.4G Remote:

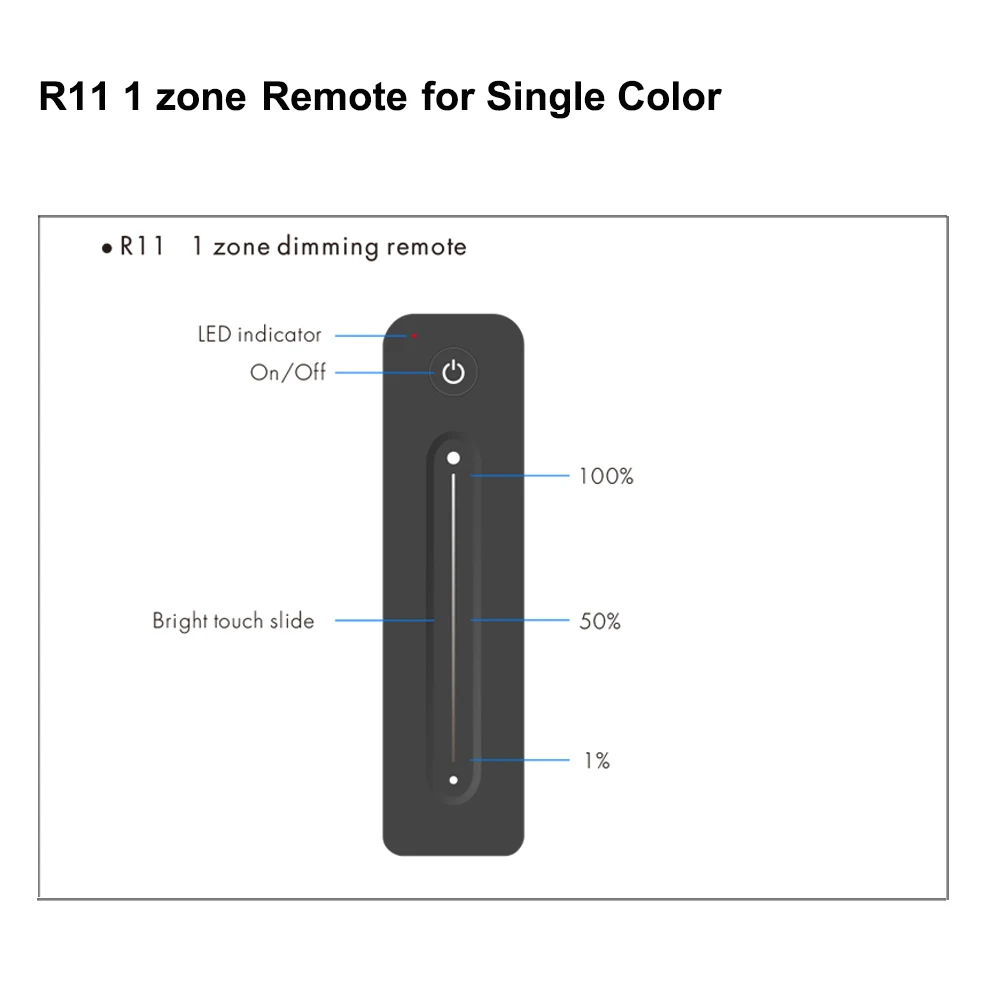

R11: 1-zone remote for single color led strip
RU4: 4-zone remote for single color led strip

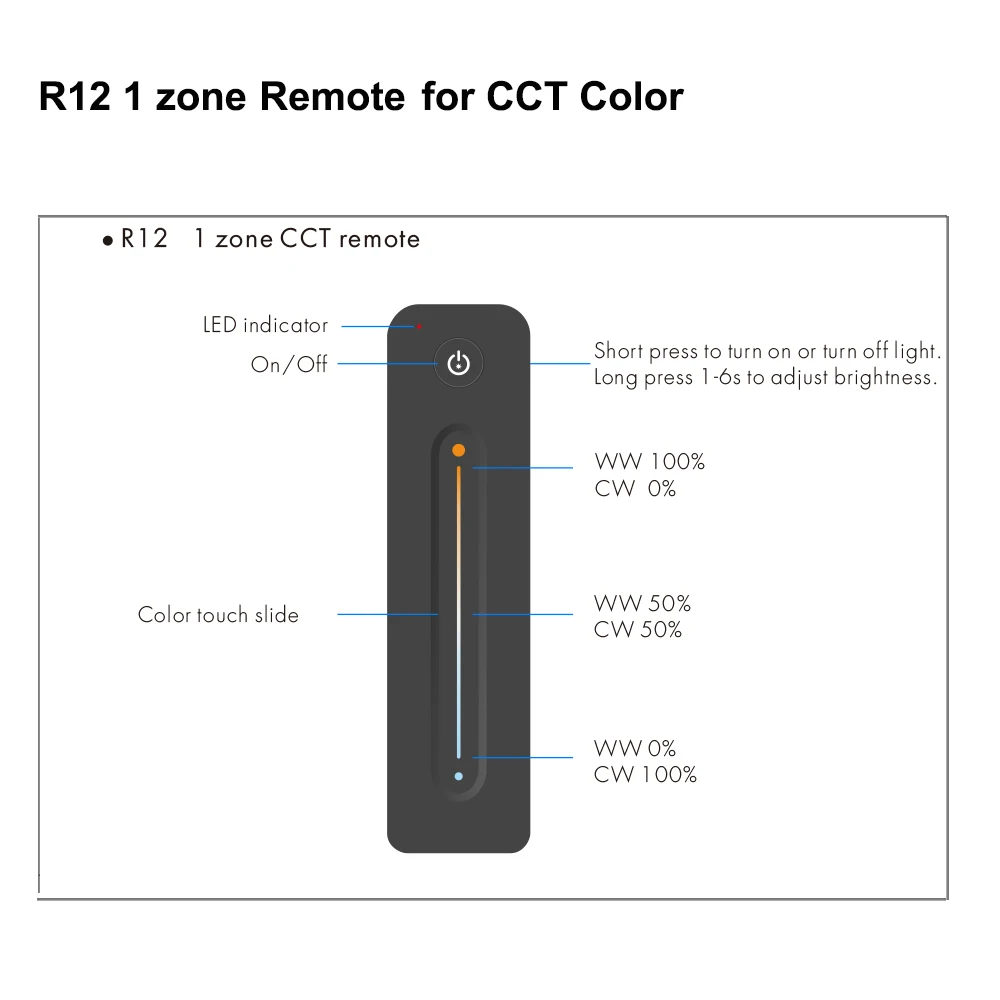

R12: 1-zone remote for CCT led strip

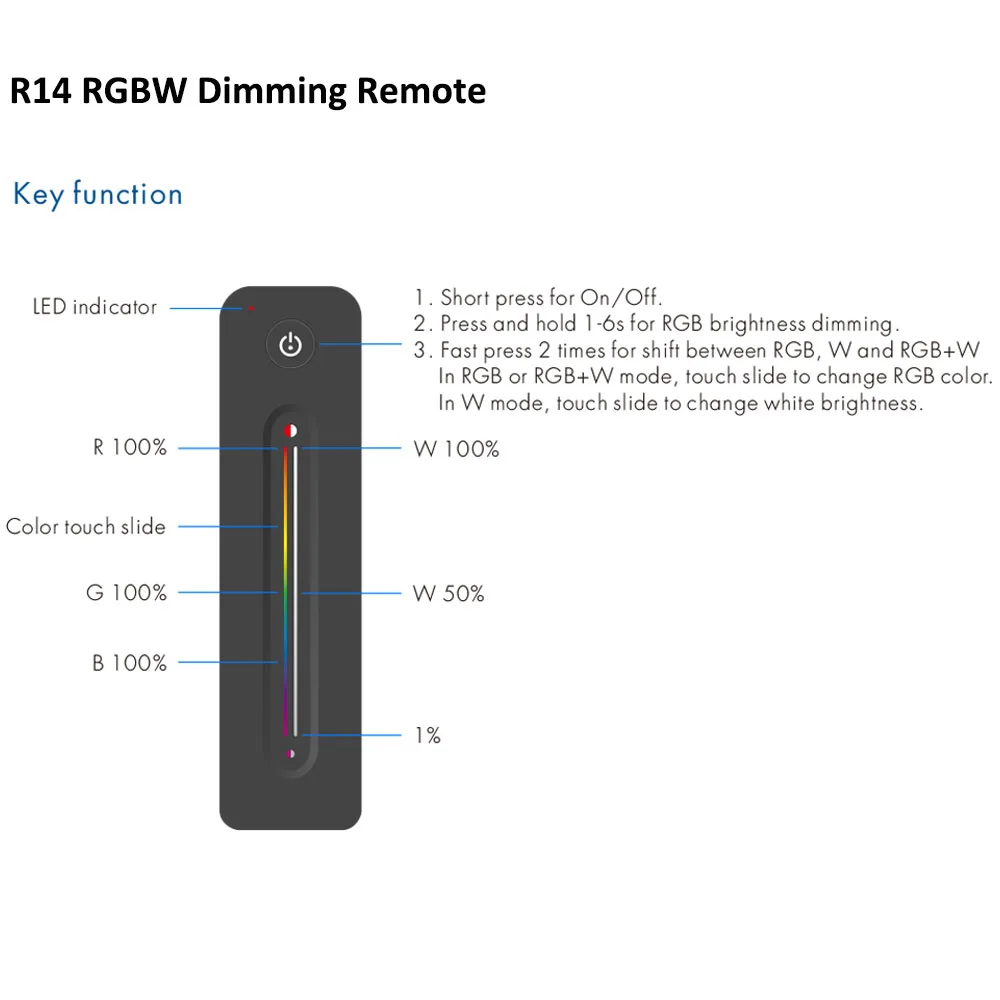

R14: 1-zone remote for RGBW led strip

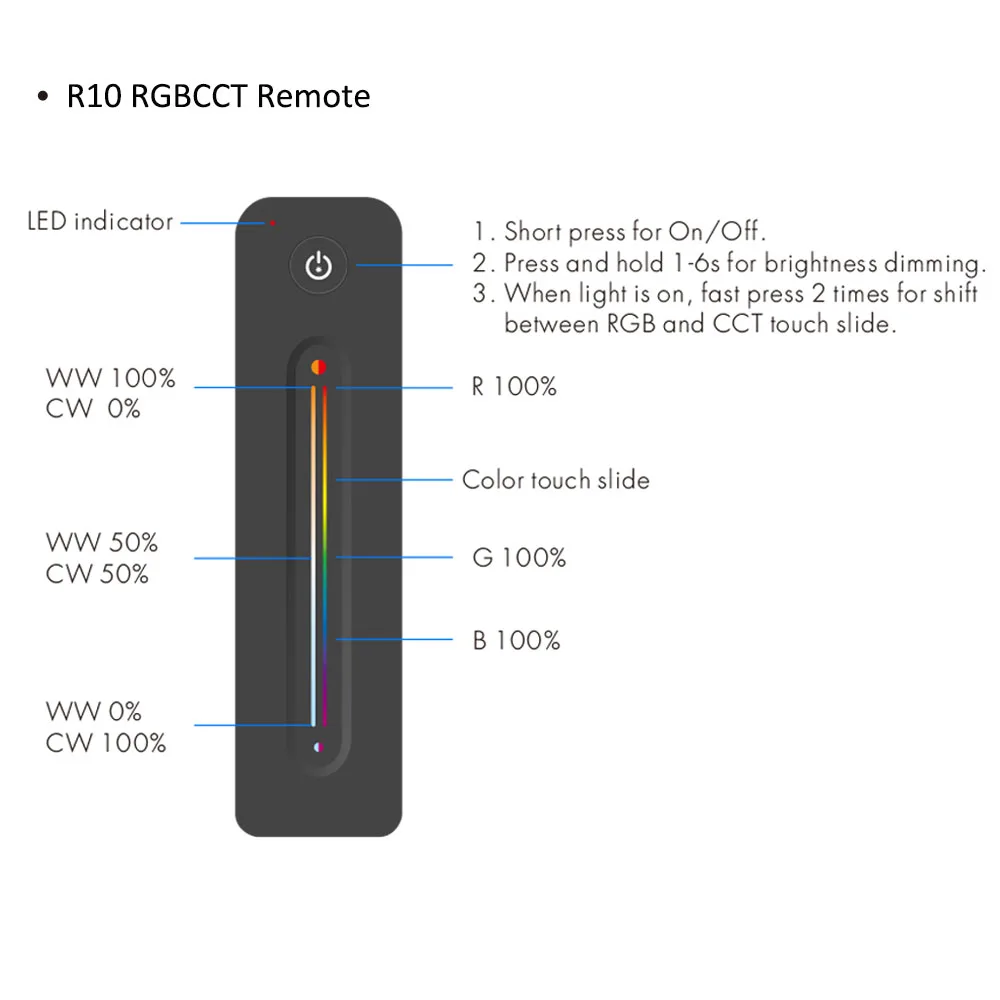

R10: 1-zone remote for RGBCCT led strip

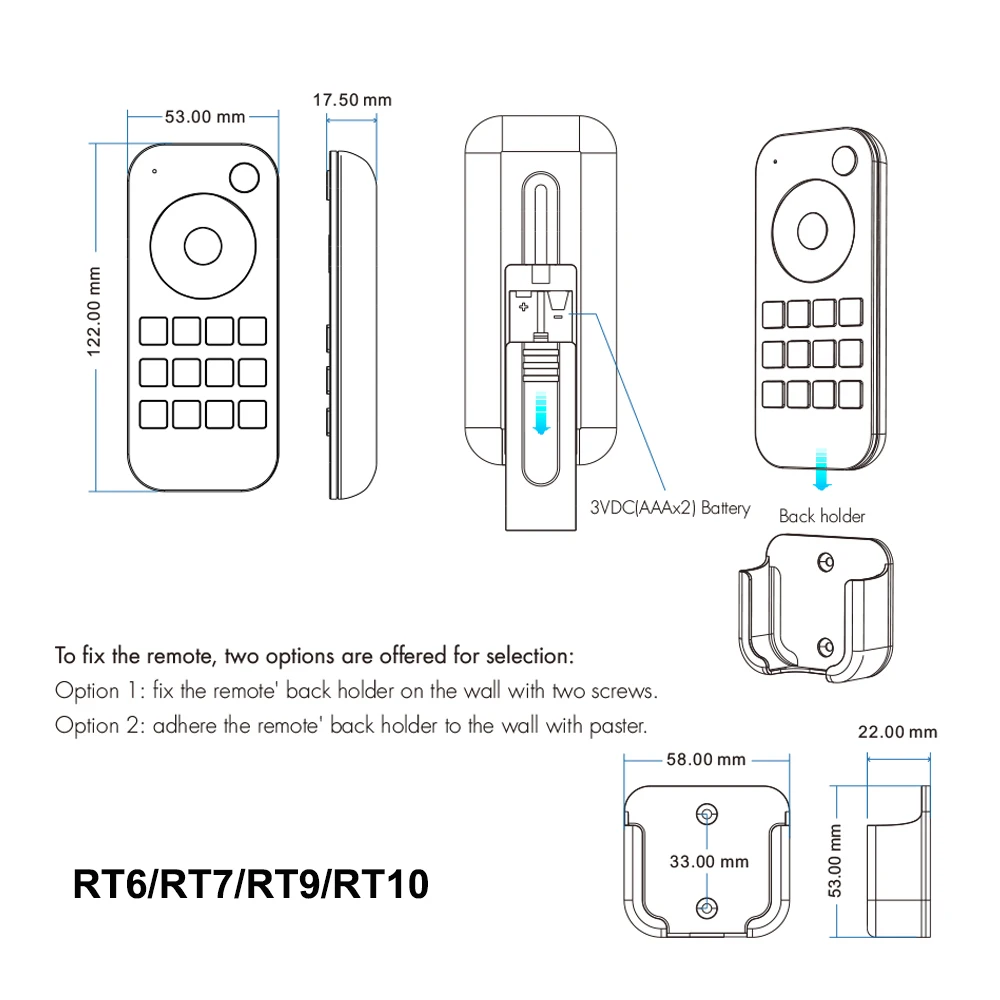

RT10: 4-zone remote for RGBCCT led strip

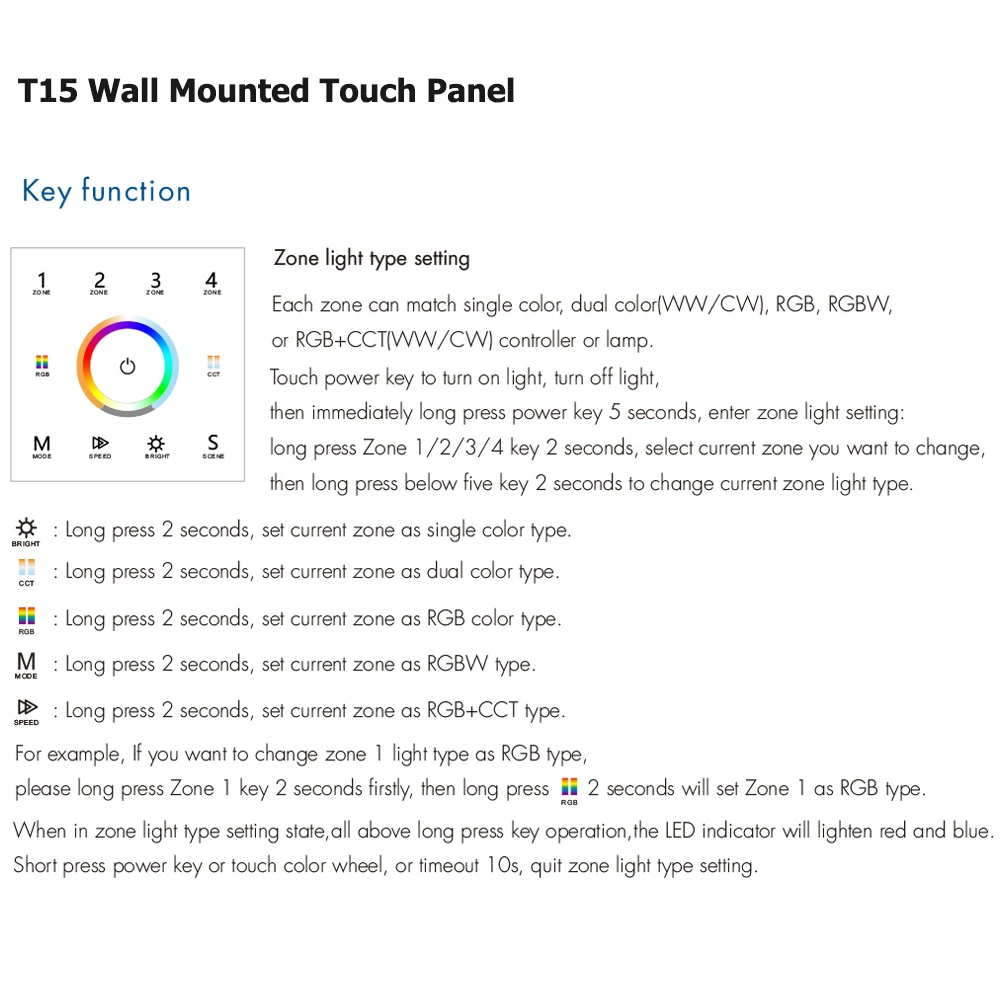

T15: 4-zone remote for RGBCCT led strip (this is wall mount touch panel, connect AC L&N wire)

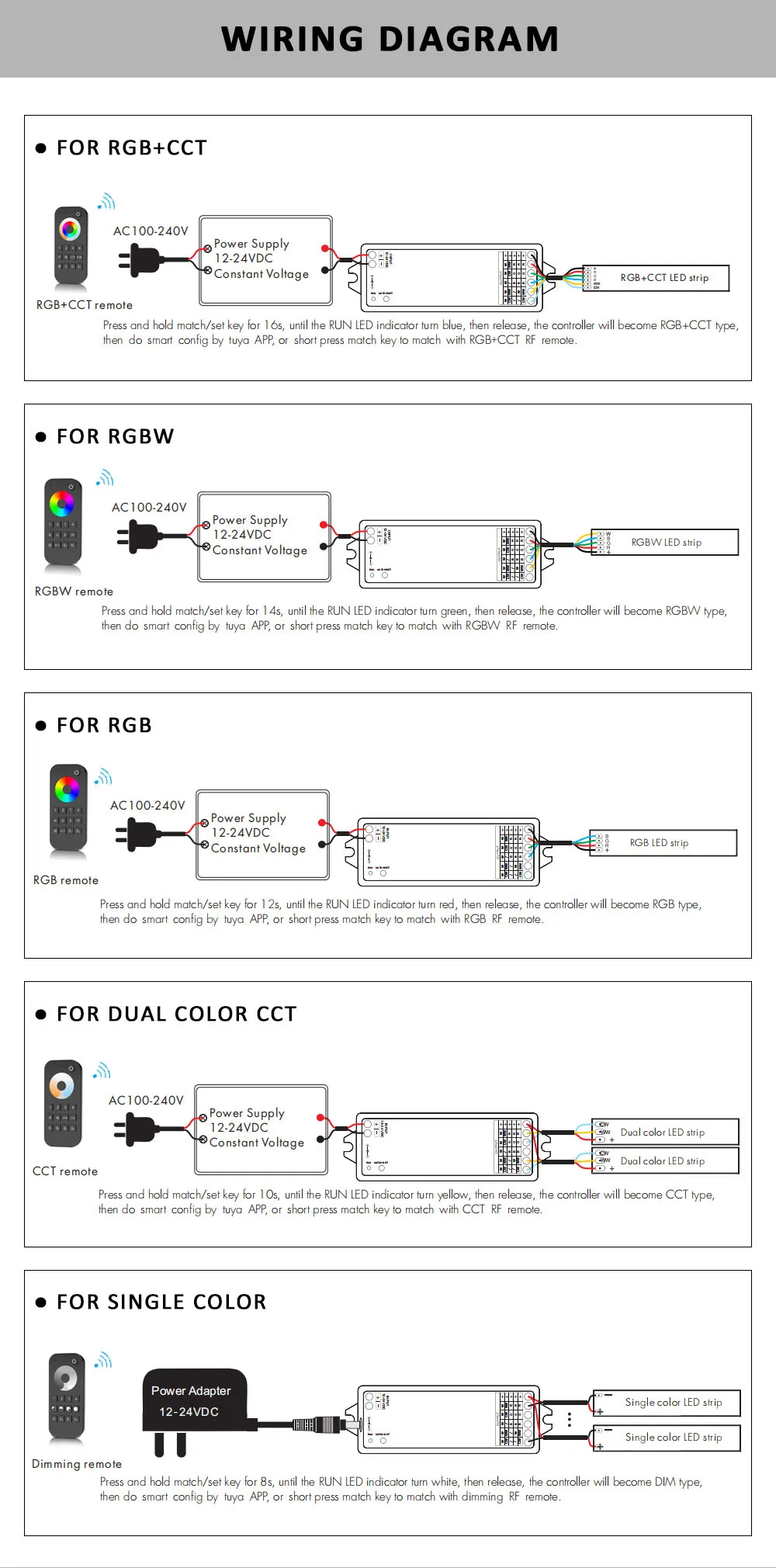

? 5CH Controller, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
? DC power socket input and 5 channel constant voltage output.

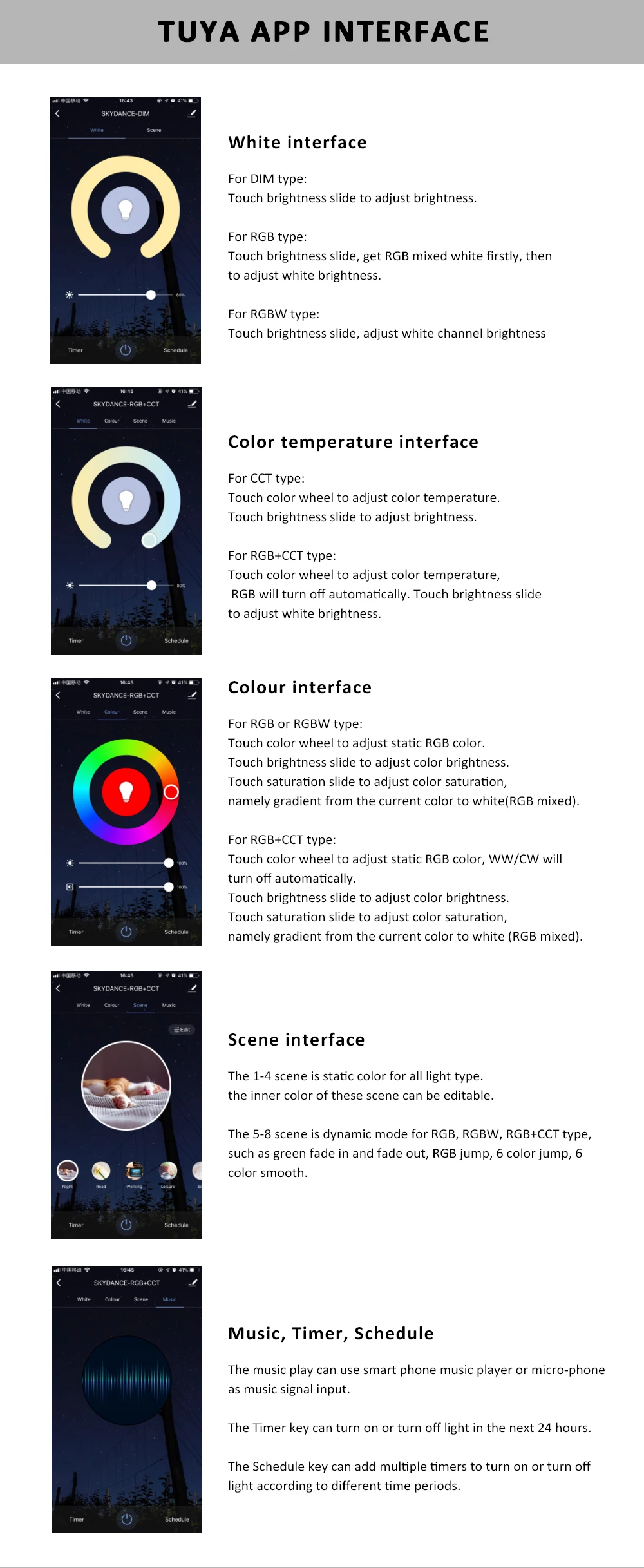

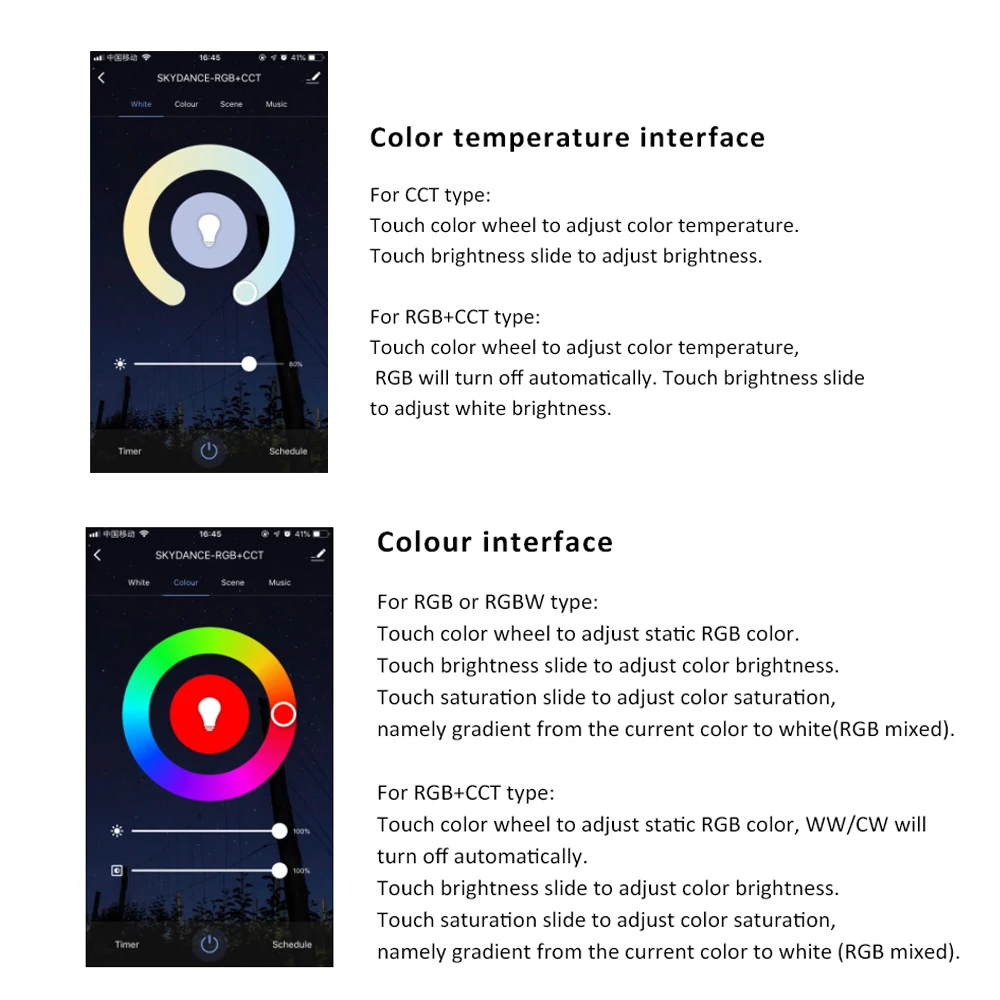

?Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
? Voice control, support amazon ECHO ,Google Home.
? Match with RF 2.4G remote control optional.
? User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
? Each WZ5 controller need to pair with TUYA ZIGBEE HUB
Technical Parameters:
? Input voltage: 12-24VDC
? Output type: constant voltage
? Output current: 5CH, 3A/CH,
? Output power: 5x (36-72)W
? Grey levels: 4096/CH
? Dimming range: 0-100%
? Remote distance: 30m
1. Tuya Zigbee Led Inteligente Controlador Dc12v 24v – Material tipo : Rubber
2. Acessórios de Iluminação – Fitment : For Audi a6 c5
3. Controlador Rgb – Code : Peij-c72
4. Dim Rgb Rgbw Rgbww Rgbcw Rgbcw Rgbcw – Origem : cn Origem
5. Luz e Iluminação – Color : Black
6. Tuya Zigbee Led Inteligente Controlador Dim Rgb Rgbw Rgbww Rgbcw Rgbcw Rgbcw Tira rf Remoto Google Echo Além de Controle de Voz – Item Peso : 200g
7. Tira 2.4g rf Remoto Google Echo Além de Controle de Voz – Part Number 2 : 4b0941191a
8. Tuya Zigbee Led Inteligente Controlador Dc12v 24v – Year : 2002-2005
9. Acessórios de Iluminação – Part Number 1 : 4b0941192a
10. Controlador Rgb – Model Name : Headlight Seal Trim
11. Dim Rgb Rgbw Rgbww Rgbcw Rgbcw Rgbcw – Material tipo : Rubber
12. Luz e Iluminação – Fitment : For Audi a6 c5
13. Tuya Zigbee Led Inteligente Controlador Dim Rgb Rgbw Rgbww Rgbcw Rgbcw Rgbcw Tira rf Remoto Google Echo Além de Controle de Voz – Code : Peij-c72
14. Tira 2.4g rf Remoto Google Echo Além de Controle de Voz – Origem : cn Origem
WZ5 match with remote control :
Use the WZ5’s Match key:
1. how to Match:
Short press match key button ,then immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote.
2. how to Delete:
Long Press match key button of WZ5 for 20s,
The LED indicator fast flash a few times
means all matched remotes were deleted.
Use Power Restart
how to Match:
Turn off the power of WZ5, then Turn on again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
how to Delete:
Turn off the power of WZ5, then switch on again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
15. Tuya Zigbee Led Inteligente Controlador Dc12v 24v – Color : Black
