Spi Pixel Rgb Controller Cartão sd para ic Dmx512 Ws2812 Ws2811 Apa102 Ws2815 Fita Led Dc5v24v 12v K1000s Atualizado T1000s
Original price was: R$ 202,75.R$ 141,93Current price is: R$ 141,93.
DÚVIDAS?
Envie um email para:
Acessórios de Iluminação
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Características | . |
| Número do Modelo | K1000s |
| Freqüência de Oscilação | . |
| Modo de Conexão | Wire Connect |
| Garantia | . |
| Certificado | Ce, rohs |
| Tensão | 5-24v |
| Material | Iron |
| Voltagem | . |
| Fonte de Energia | DC |
| Potência Máx. de Carga | 1024 Pixels |
| Distância Remota | . |
| Luzes Adequadas | Full Color Pixel Lights |
| Método Controlado | TTL SPI |
| Nome da Marca | Sage LU MEI |
| Origem | CN (origem) |
| Tipo de Item | Controlador RGB |

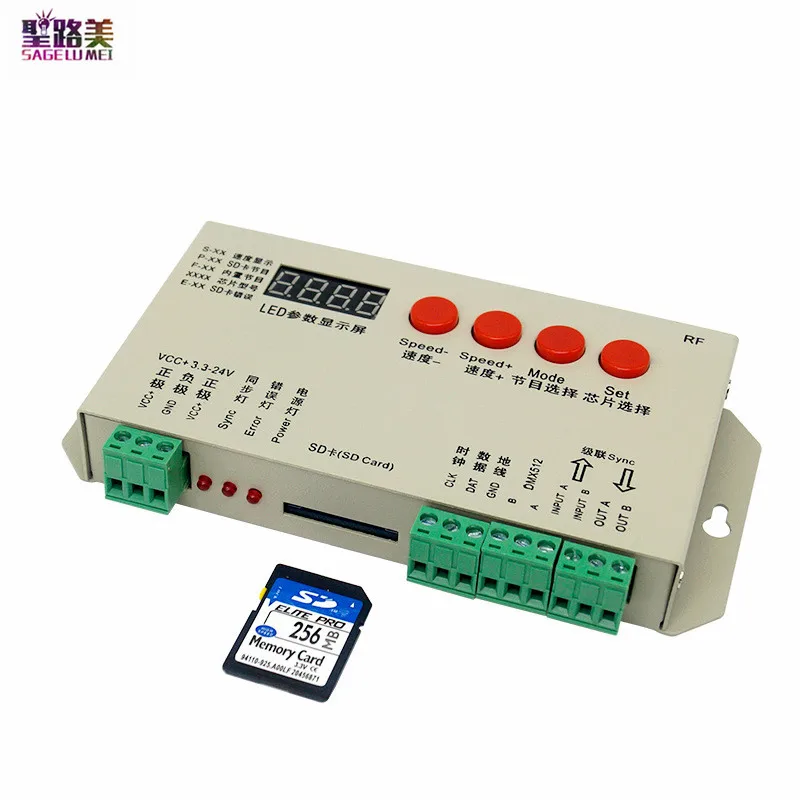

DC5V-24V 12V K1000S (T1000S Updated) SPI Pixel RGB Controller SD Card For IC DMX512 WS2812 WS2811 APA102 WS2815 LED Strip Light
Parameter and feature
1.Product name: addressable led controller
2.Addressable program: Yes
3.Working Voltage: DC5V-24V
4.Power: 2W
5.Ports Number: 1PCS
6.Max Controller Pixels: 2048Pixels, 2048pixels/port
7.Working Temperature: -30?~85?
8.Product Size:158*79*25MM
9.SD Card Support: Yes
10.Net Weight: 0.24KG
11.LED display fcuntion
12.Support Multiple synchronization: Yes
13.Application: Most of led lights with IC Chips
14.Can control 32-65536 grayscale, Gamma software correcting processing
15.Support all kinds of light source of point, line and surface. Fits for regular and irregular shape of lights project.

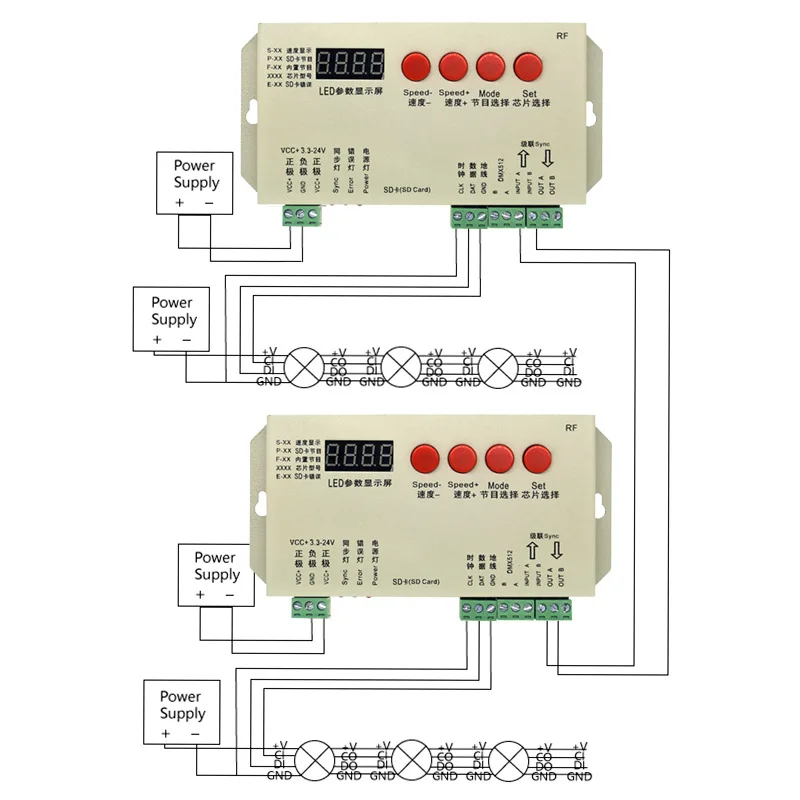

16.Light’s signal will be connected to DAT, clock wire will be connected to CLK, negative wire will b single wire and double wire IC type lights, when used for single wire IC types, there is no needing to connect to CLK wire. 17.Support IC Types:
A.Single wire IC: UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc.
B.Double wire IC: MX5109, LPD6803, D705,P9803, MX8109, SM16726, P9813, LPD8806, WS2801
C.New IC: TM1914, 9883
Specification of memory SD card1.Type: SD card(If control much led lights, high speed SD card will be recommended)
2.Memory: 256MB
3.Format: Support FAT and FAT32
4.Save Fat: *.led

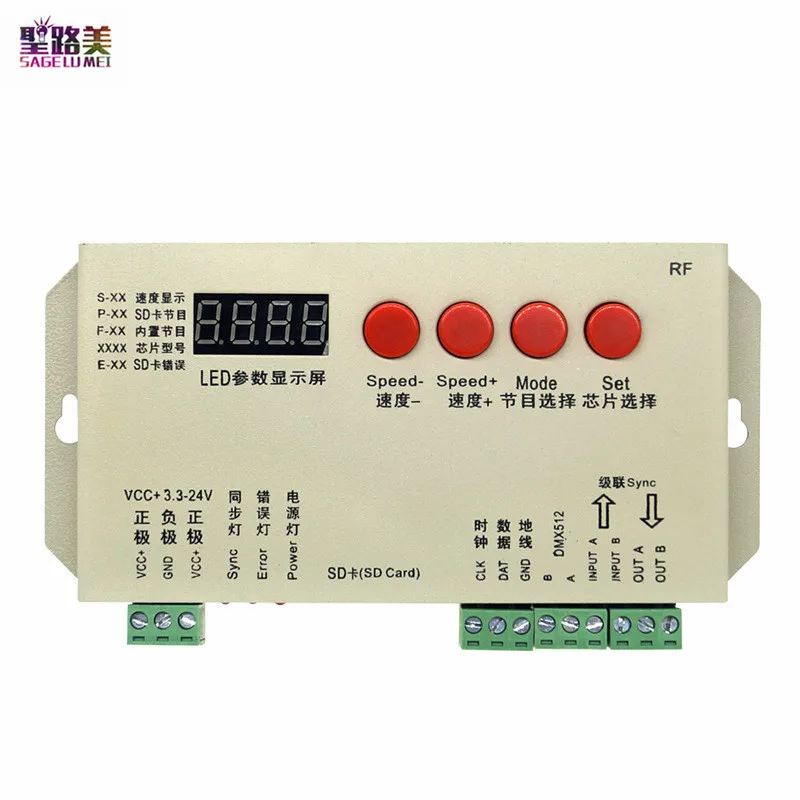

Operation of button
SPEED+: Accelerate the playing speed, max speed is S-19
SPEED-: Slow down the playing speed, min speed is S-01
MODE: Switch to programs
SET: Set IC types, choose current IC type and wait it automatic save after 8 seconds. Then restart the power.
Note: Don’t power off after choosing IC type and program, until wait about 8 second, all the setting is saved automatically
