Name: Rgbic Cob Água Correndo Led Strip Light Ws2811 5m 10m 15m 20m Dc24v Endereçável Dream Color Horse Race Touch Controle Remoto Lâmpada
Brand: LUZ de LED
SKU: 1005005538063264
Price: 56.32 BRL
Availability: InStock

LUZ de LED Luzes e Iluminação

Vídeo de Demonstração do Produto

Opção de Compra e tempo de entrega

Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Ficha técnica do produto

Características	Especificações
Dispositivo Smart	NO
Temperatura da COR (K)	RGB
Geração de Energia	Switch
Número do Modelo	RGB COB Running Water Strip
Modelo do Chip de LED	Ws2811
Vida Útil Média (hs)	50000 Hours
Certificado	Ccc, ce, rohs, ul
Tensão	24V
Fonte de Energia	DC
Consumo de Energia (w/m)	11.52w/m
Ocasião	Sala de Estar
Número de Leds/m	480
Marca do Chip de LED	Epistar
À Prova D’água	NÃO
Especificações (filetes de Luz/m)	480
Tipo de Faixa	COB
Nome da Marca	Mjjc
Origem	CN (origem)
Tipo de Item	Faixa
Feature 1	Running Water Flowing LED Strip RGB
Feature 2	Bluetooth LED Strip

1. Toys e Sports – Número do Modelo : Xd63

2. Beauty e Health – tipo : 3 Estilos

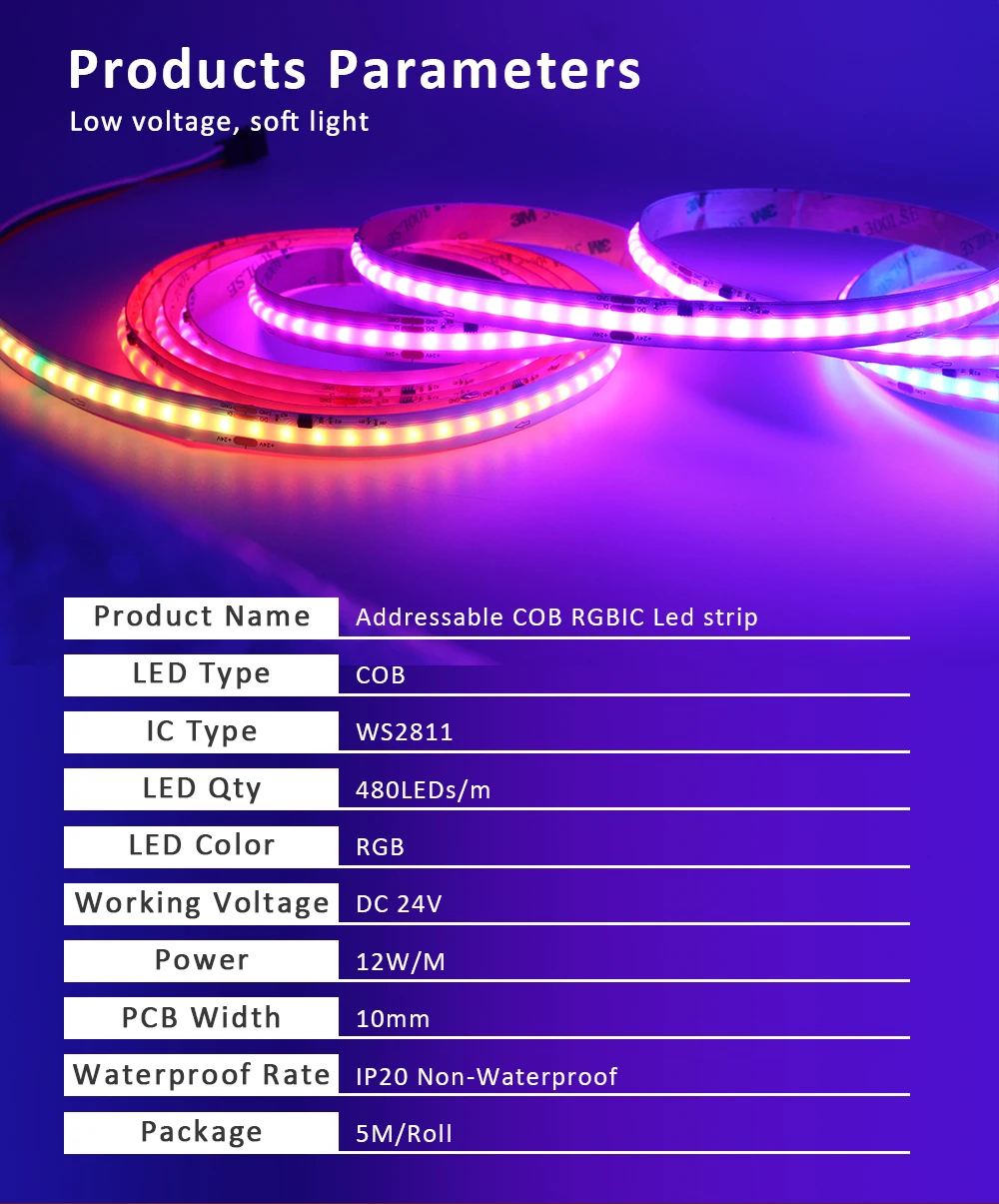

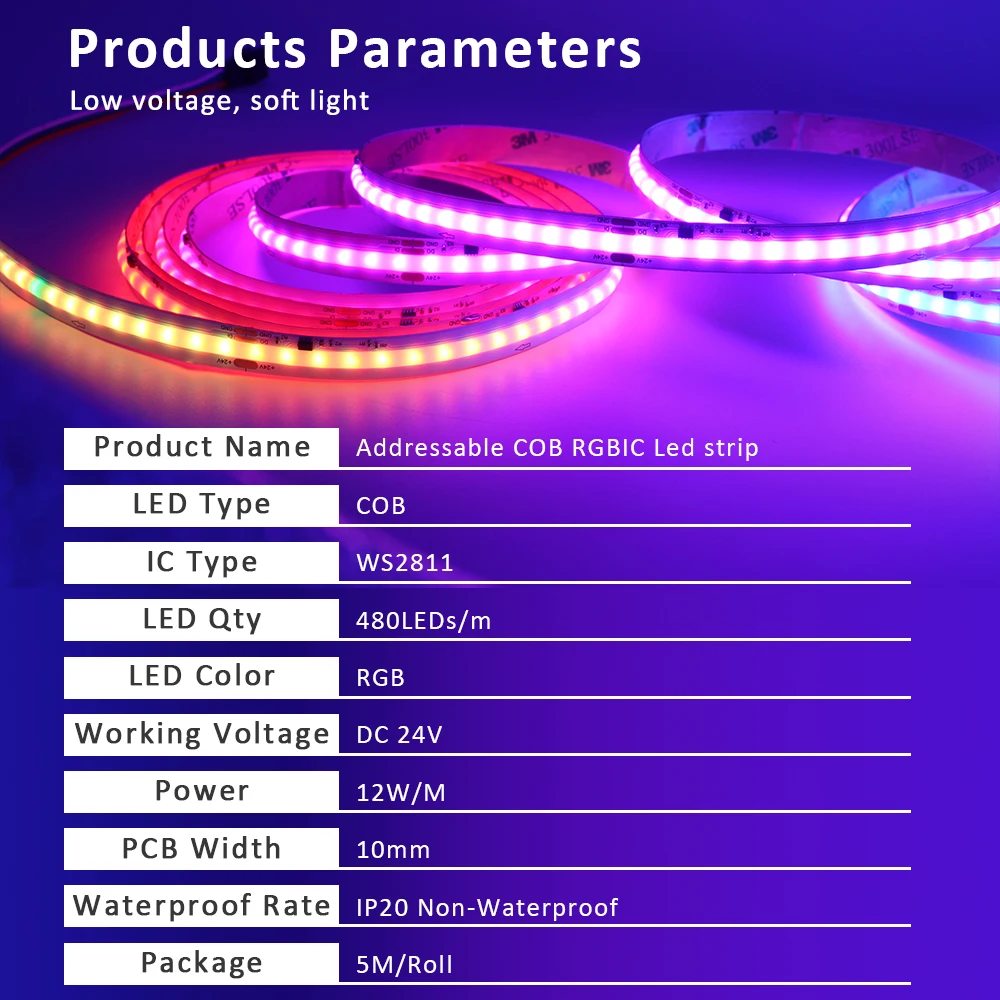

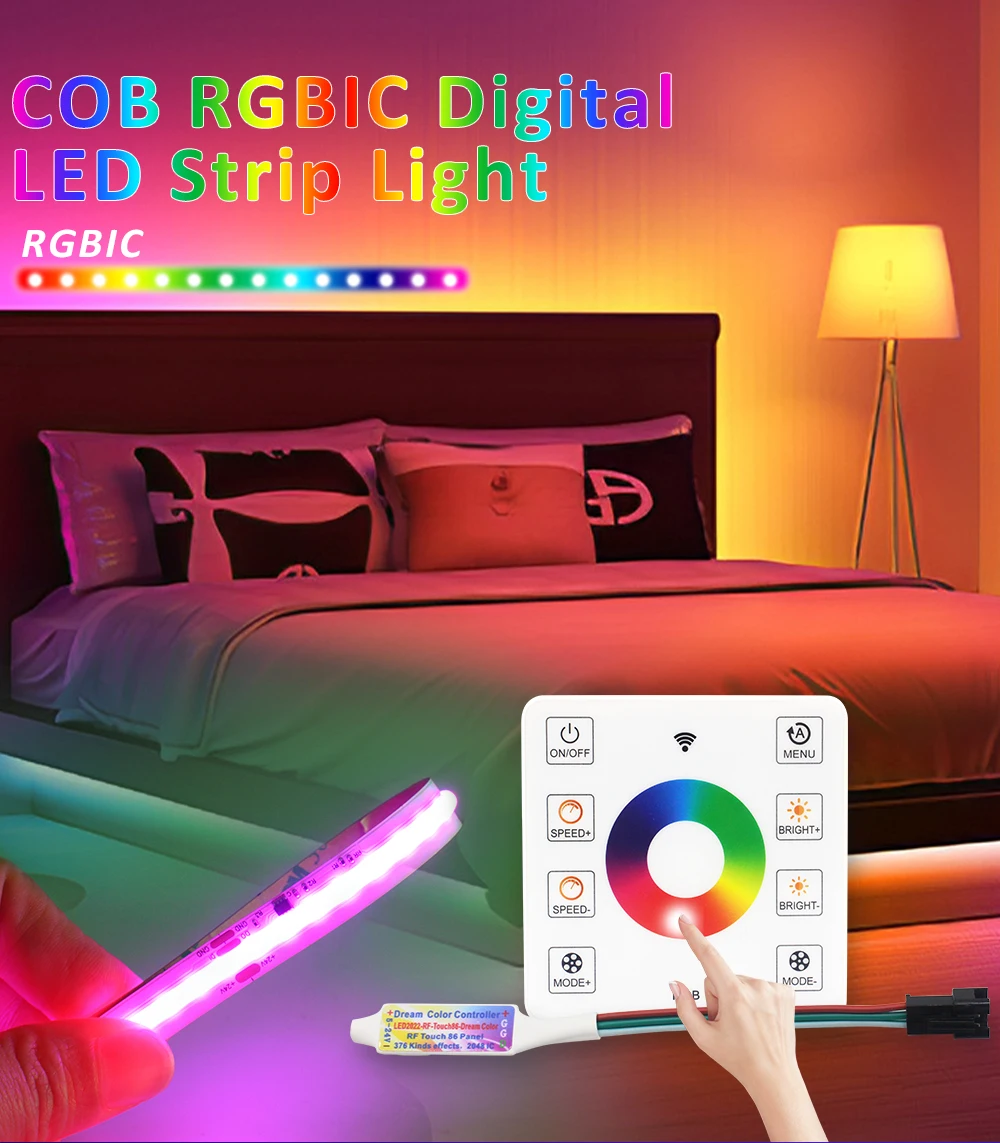

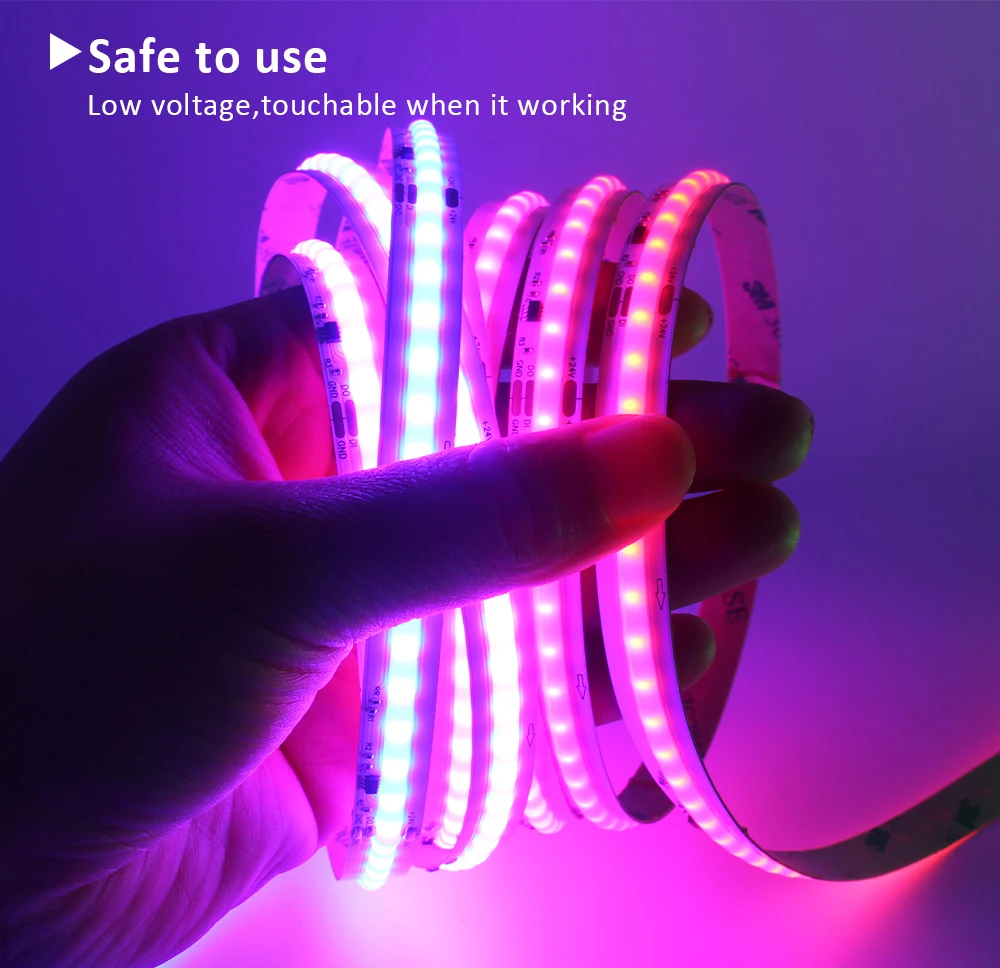

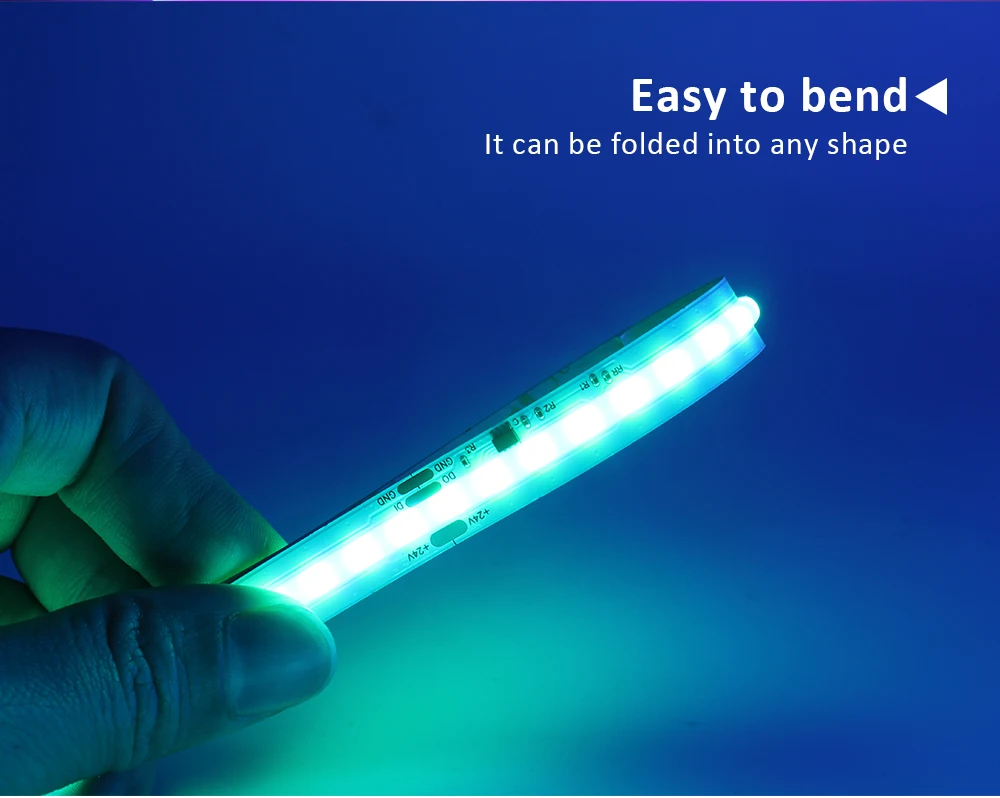

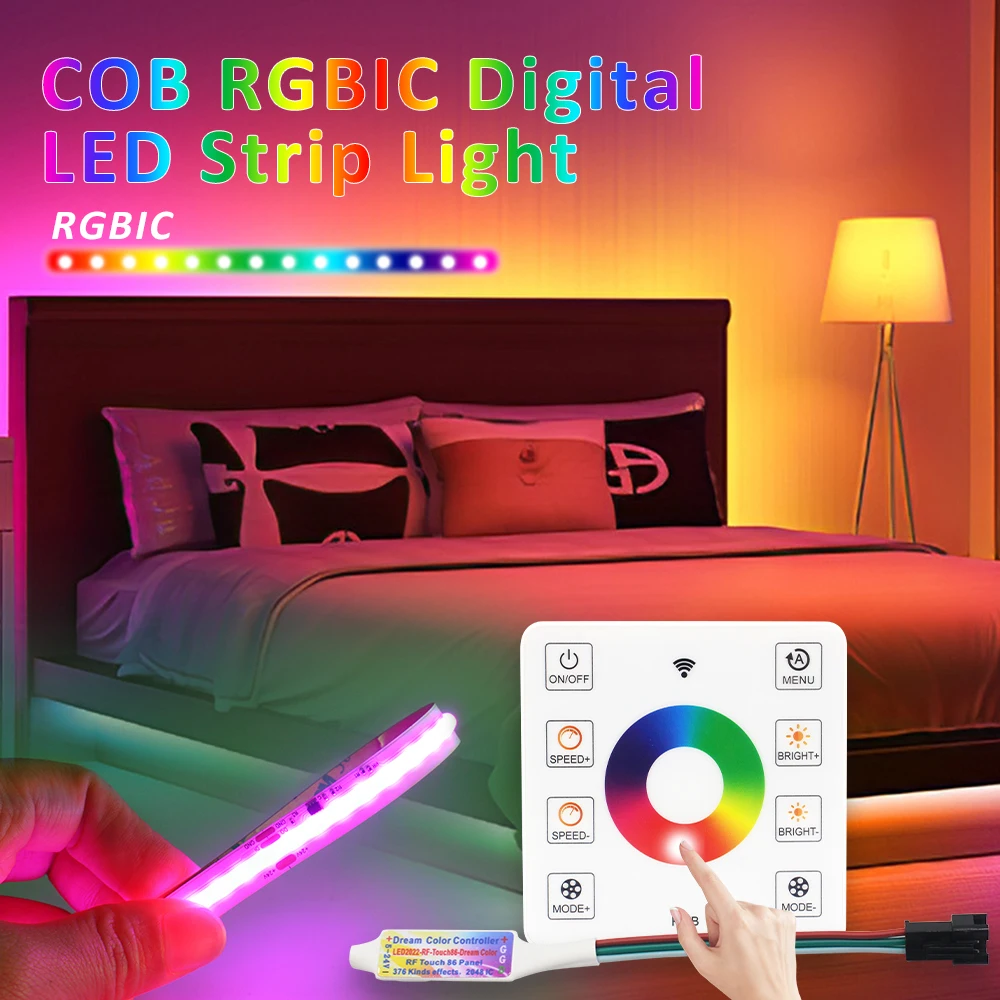

*** RGBIC Digital LED Strip Light

Product Name: Addressable COB RGBIC Led strip

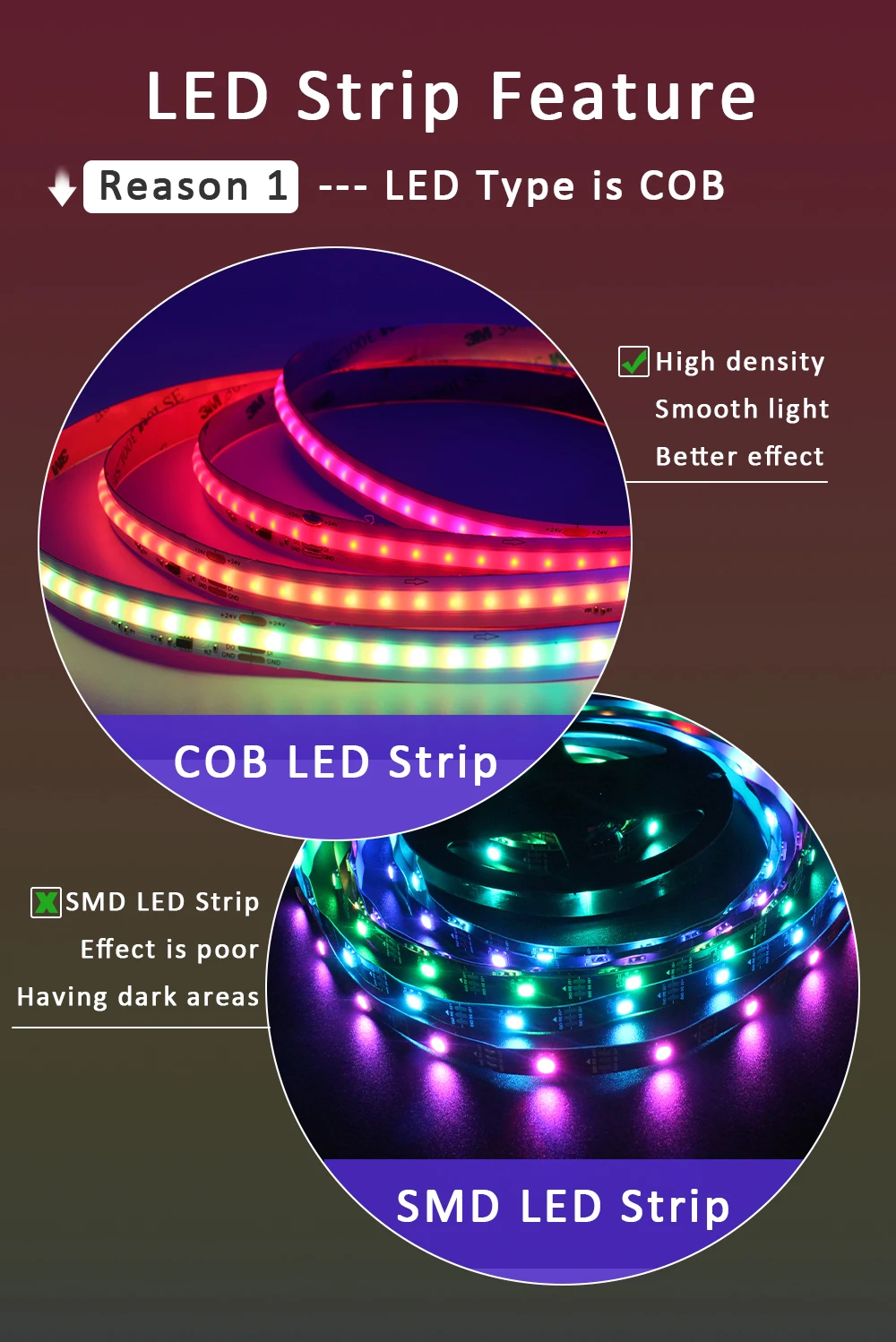

LED Type: COB
IC Type: WS2811
LED Qty: 480LEDs/m
LED Color: RGB
Working Voltage: DC 24V
Power: 12W/M
PCB Width: 10mm
Waterproof Rate: IP20 Non-Waterproof
Package: 5M/Roll

RGB Wire-Order: + RBG
Connection:
Red Wire —- DC24V (+)
Green Wire — Digital Wire
White Wire — GND wire (-)

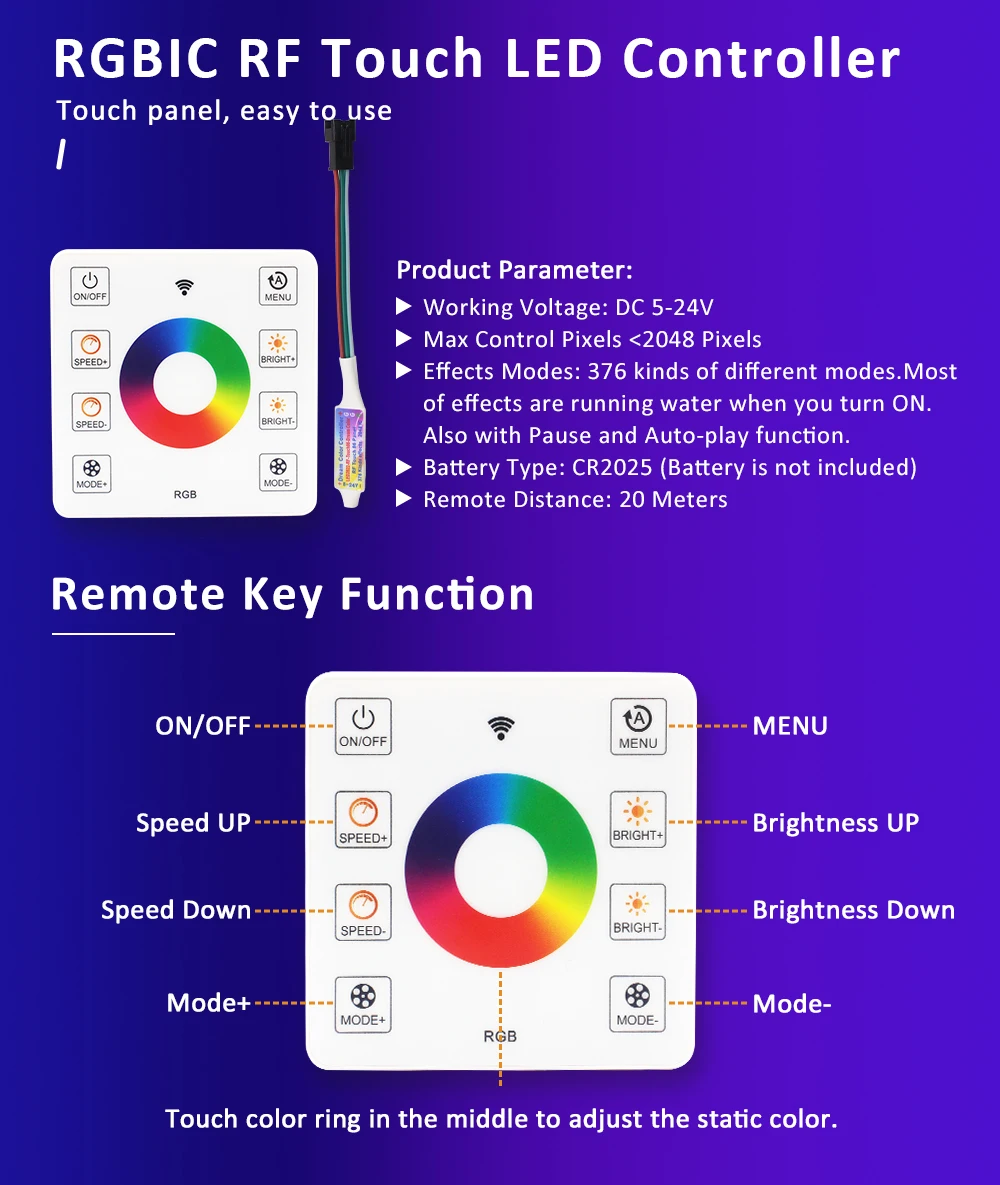

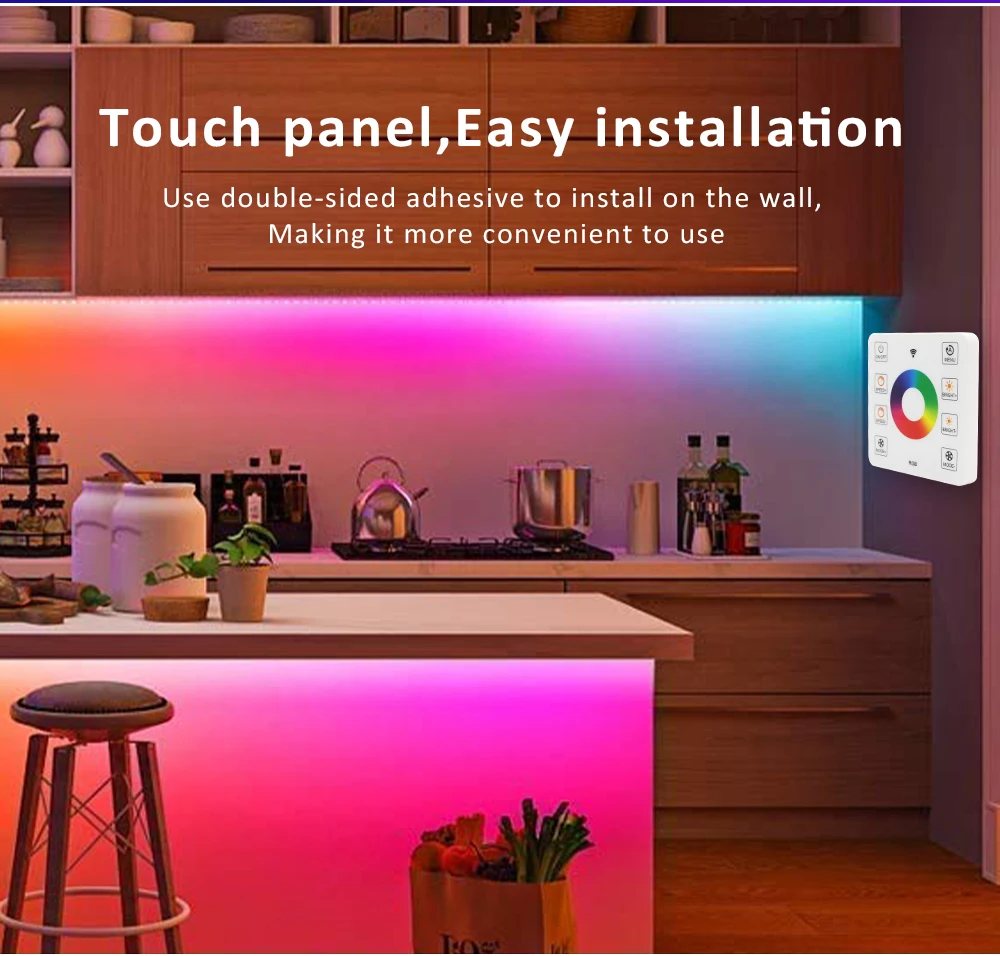

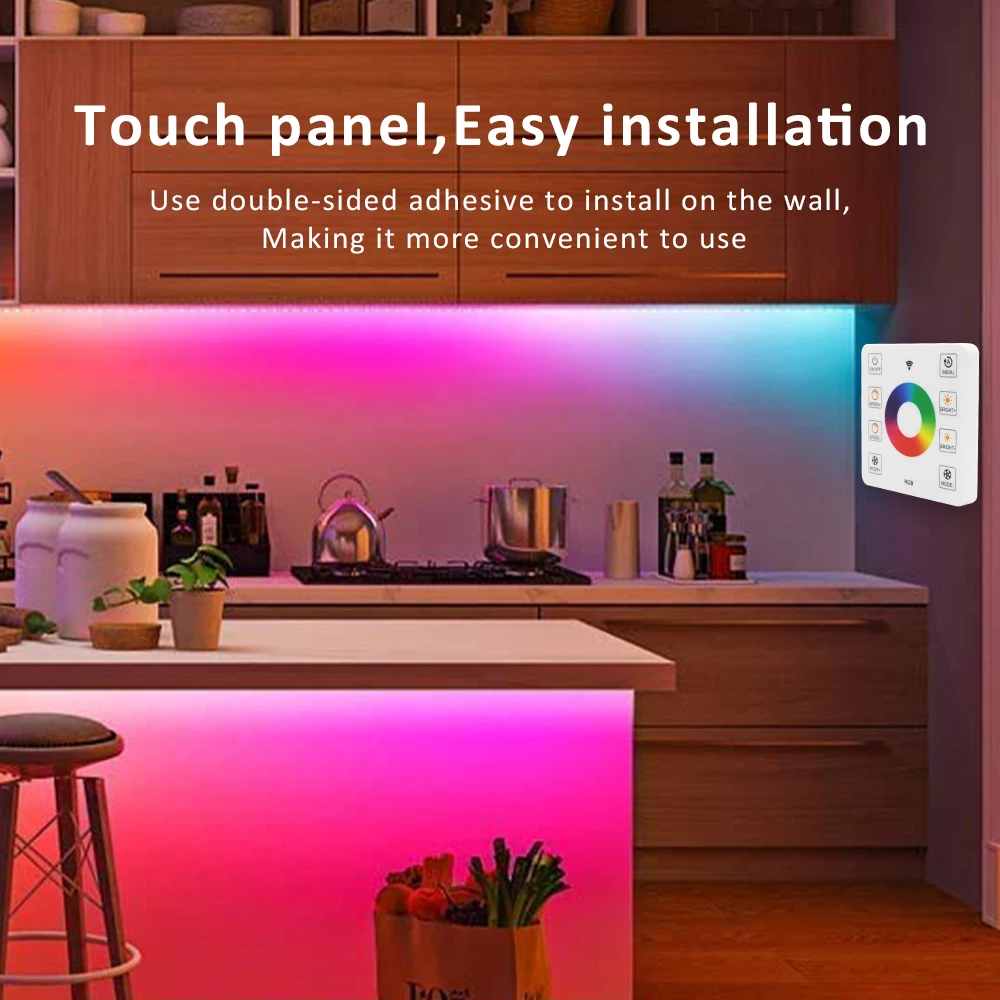

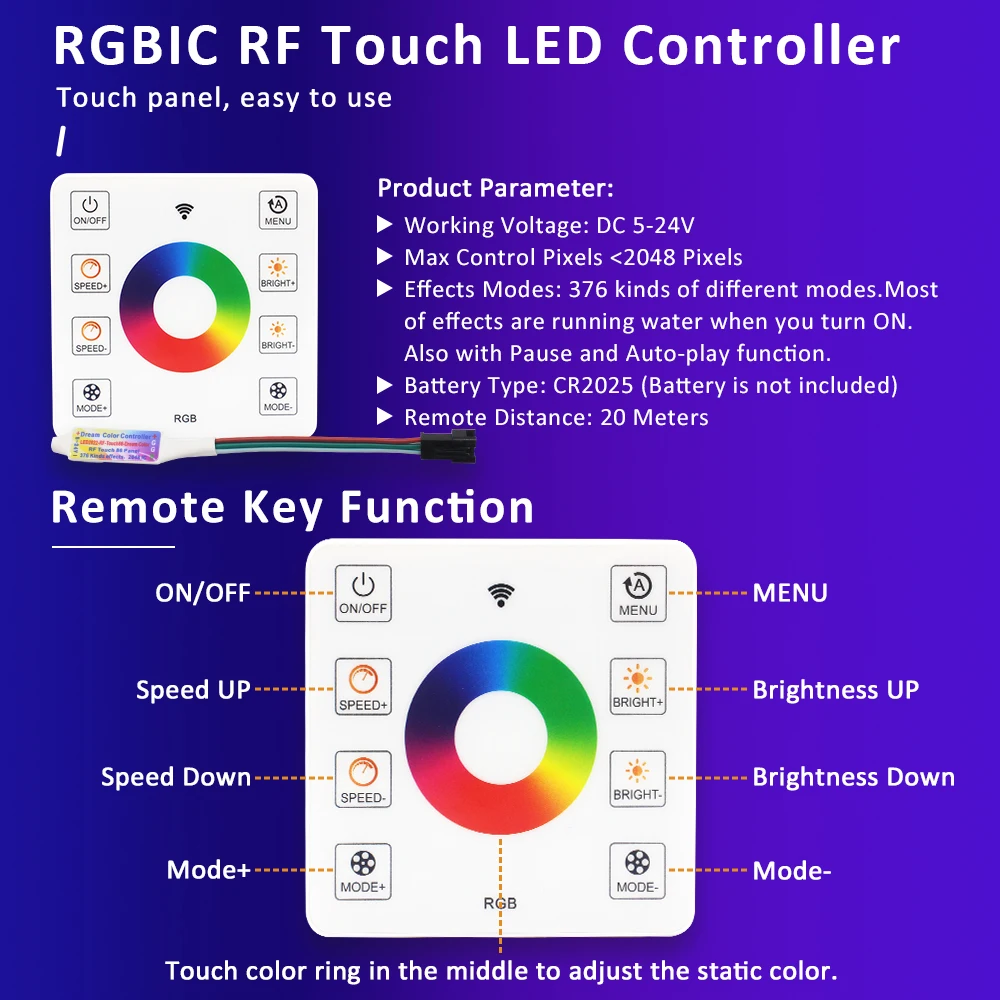

*** RGBIC RF Touch LED Controller

Working Voltage: DC 5-24V
Max Control Pixels <2048 Pixels
Effects Modes: 376 kinds of different modes.Most of effects are running water when you turn ON. Also with Pause and Auto-play function.
Battery Type: CR2025 ( The remote is not with battery)
8 Keys Function: ON/OFF , Speed UP/Down, Mode+/Mode-, MENU, Brightness UP/Down, Touch color ring in the middle to adjust the static color.
Remote Distance: 20 Meters

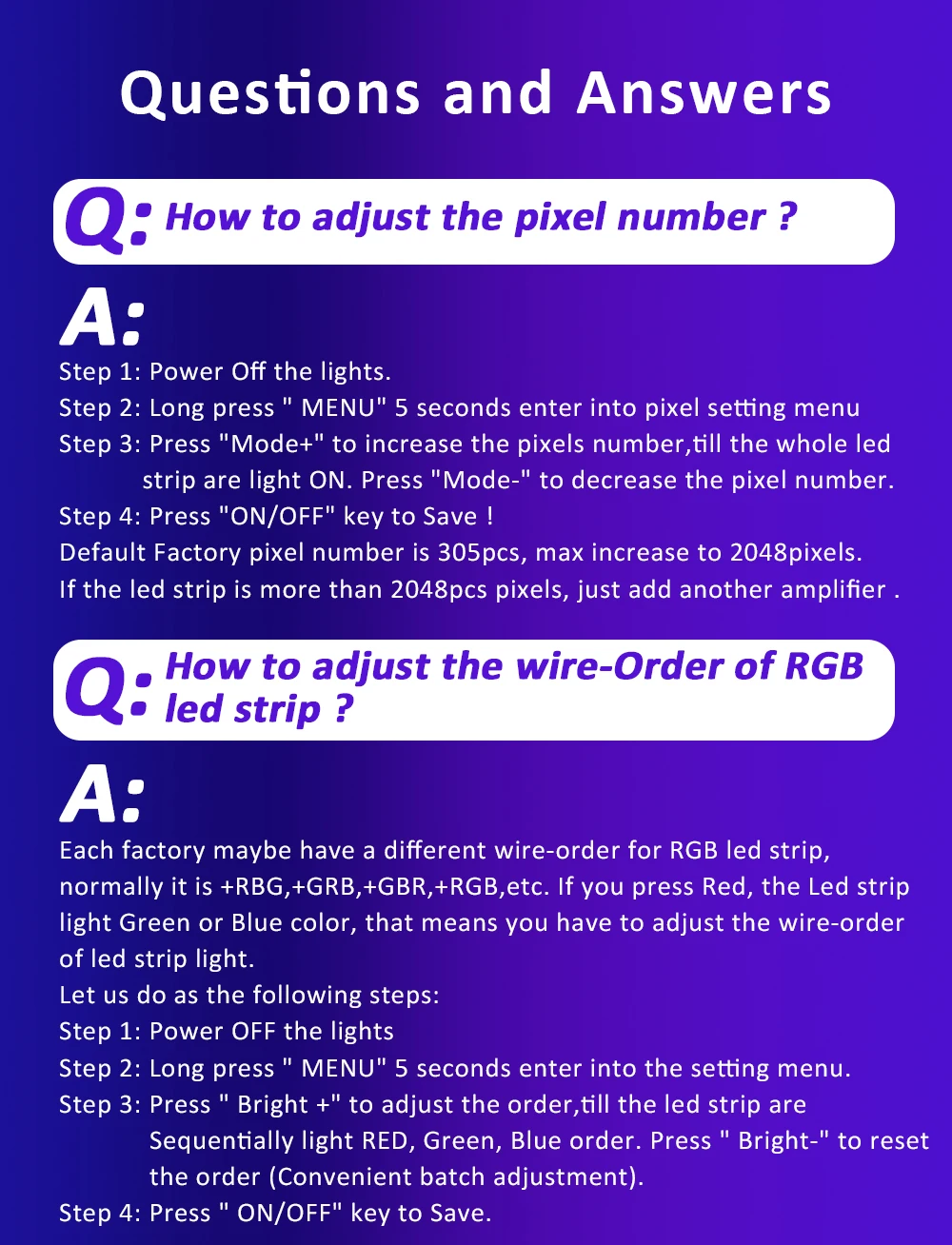

How to adjust the pixel number

Step 1: Power Off the lights.
Step 2: Long press e MENU& 5 seconds enter into pixel setting menu
Step 3: Press &Mode+& to increase the pixels number,till the whole led strip are light ON. Press &Mode-& to decrease the pixel number.
Step 4: Press &ON/OFF& key to Save !
Default Factory pixel number is 305pcs, max increase to 2048pixels. If the led strip is more than 2048pcs pixels, just add another amplifier .

How to adjust the wire-Order of RGB led strip

Each factory maybe have a different wire-order for RGB led strip, normally it is +RBG,+GRB,+GBR,+RGB,etc. If you press Red, the Led strip light Green or Blue color, that means you have to adjust the wire-order of led strip light.
Let us do as the following steps:
Step 1: Power OFF the lights
Step 2: Long press e MENU& 5 seconds enter into the setting menu.
Step 3: Press e Bright +& to adjust the order,till the led strip are Sequentially light RED, Green, Blue order. Press e Bright-& to reset the order (Convenient batch adjustment).
Step 4: Press e ON/OFF& key to Save.

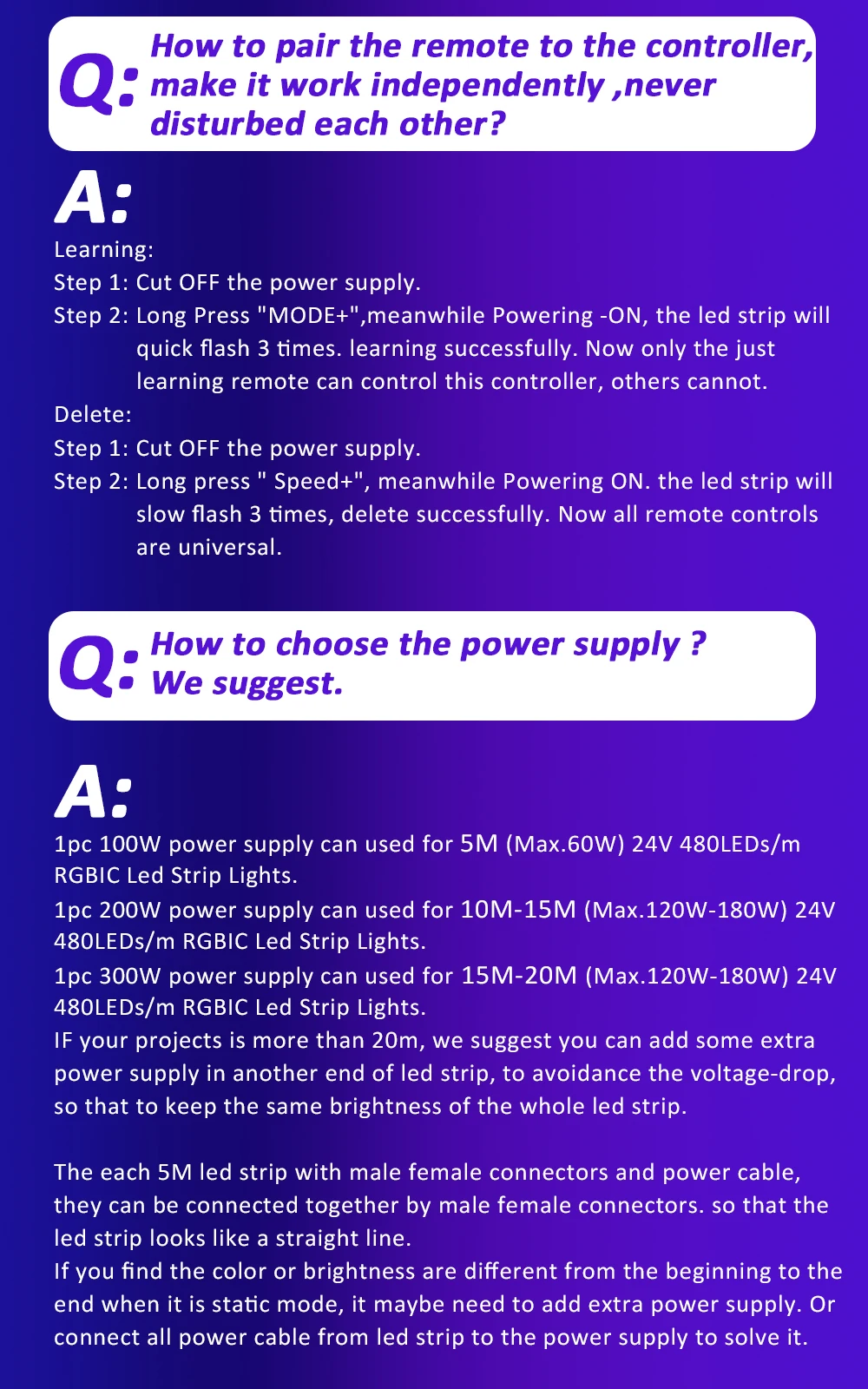

How to pair the remote to the controller, make it work independently ,never disturbed each other

Learning:
Step 1: Cut OFF the power supply.
Step 2: Long Press &MODE+&,meanwhile Powering -ON, the led strip will quick flash 3 times. learing sucessfully. Now only the just learning remote can control this controller, others cannot.

Delete:
Step 1: Cut OFF the power supply.
Step 2: Long press e Speed+&, meanwhile Powering ON. the led strip will slow flash 3 times, delete sucessfully. Now all remote controls are universal.

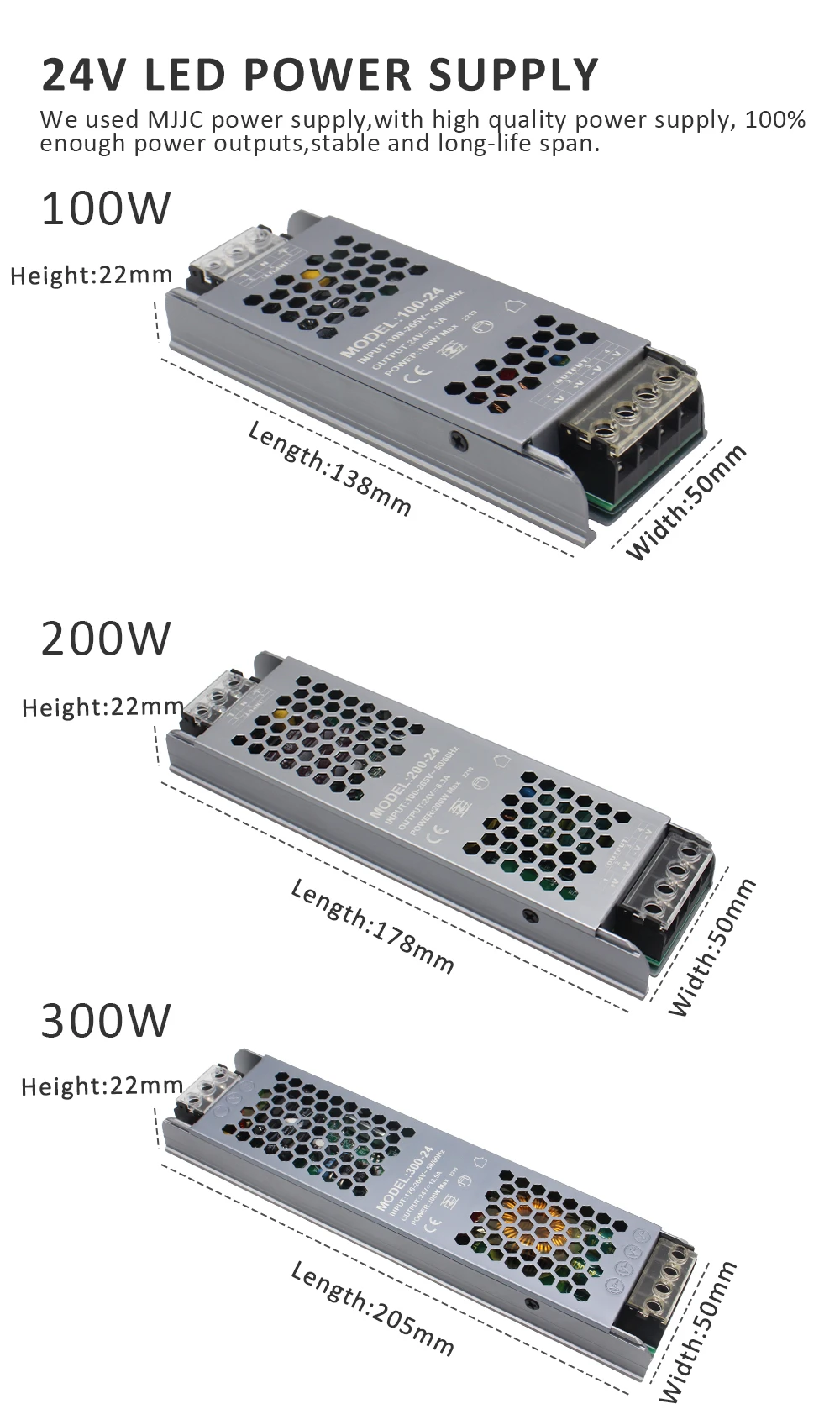

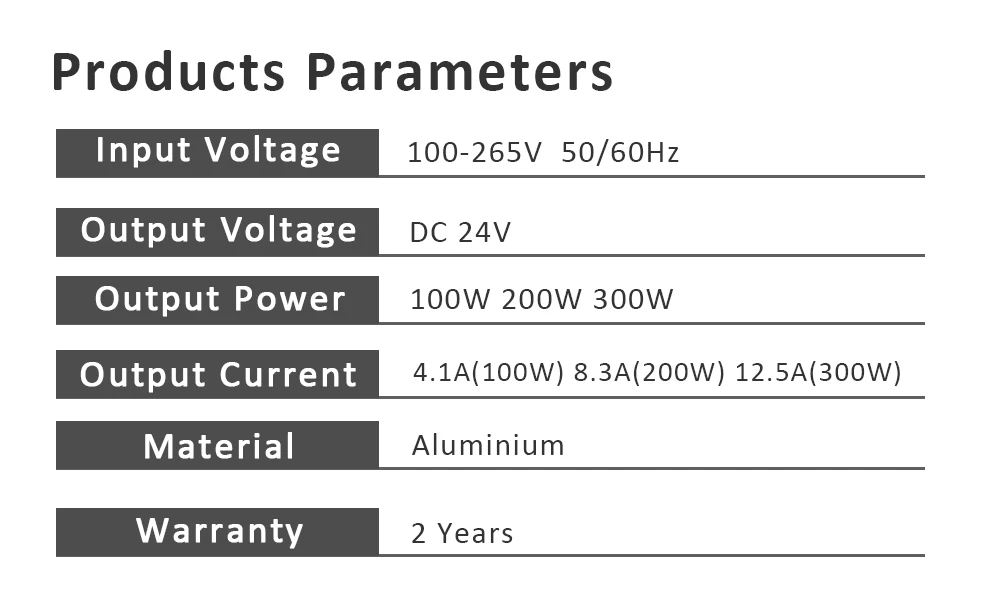

*** Power Supply

We used MJJC power supply,with high quality power supply, 100% enough power outputs,stable and long-life span.
The Power : 100W / 200W / 300W
Input Voltage: 100-265V AC, widely voltage used.
Output Voltage: DC 24V

How to choose the power supply we suggest.
1pc 100W power supply can used for 5M (Max.60W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 200W power supply can used for 10M-15M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.
1pc 300W power supply can used for 15M-20M (Max.120W-180W) 24V 480LEDs/m RGBIC Led Strip Lights.

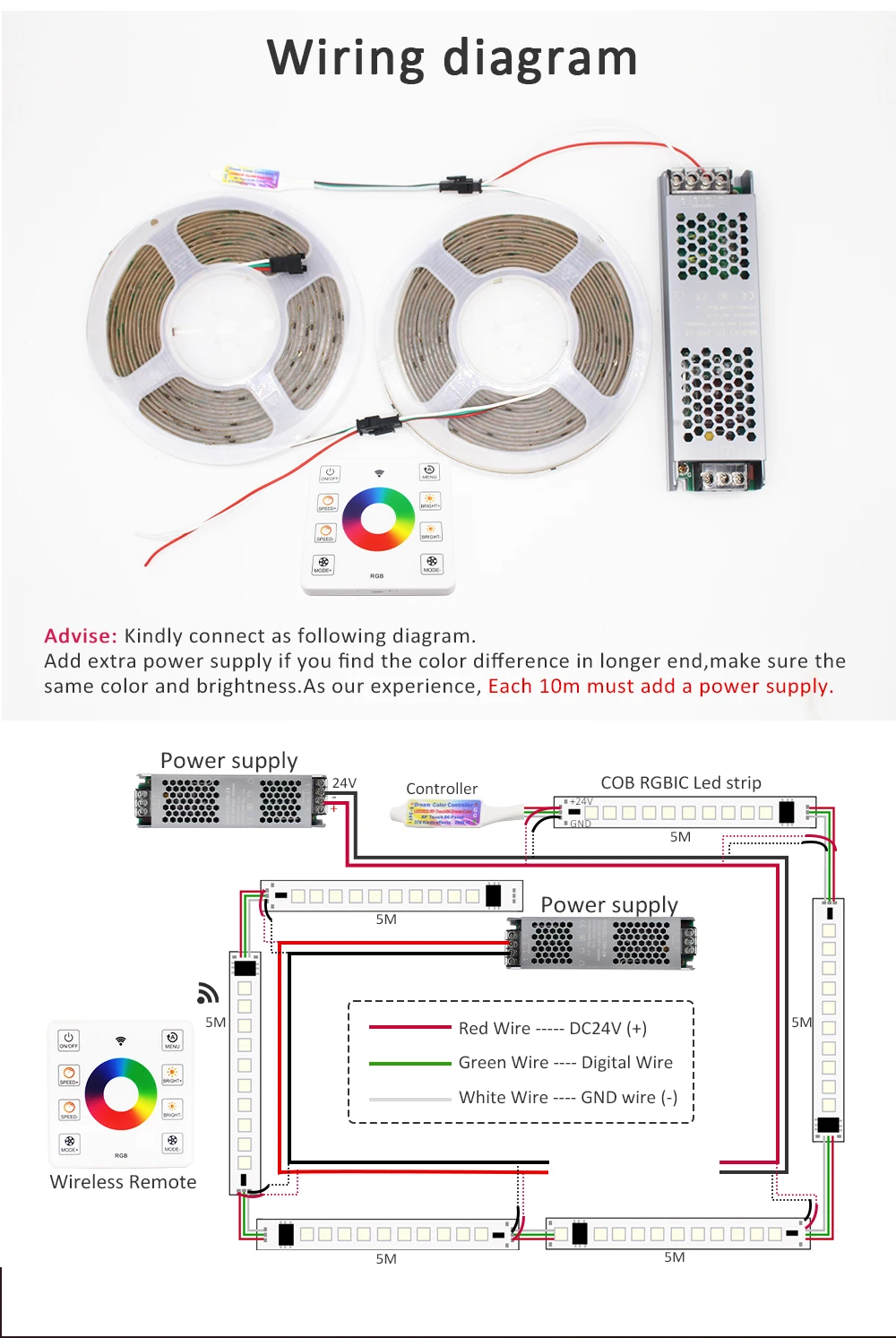

IF your projects is more than 20m, we suggest you can add some extra power supply in another end of led strip, to avoide the voltage-drop, so that to keep the same birhgntess of the whole led strip.

The each 5M led strip with male female connectors and power cable, they can be connected together by male female connectors. so that the led strip looks like a straight line.
If you find the color or brightness are different from the beginning to the end when it is static mode, it maybe need to add extra power supply. Or connect all power cable from led strip to the power supply to solve it.
