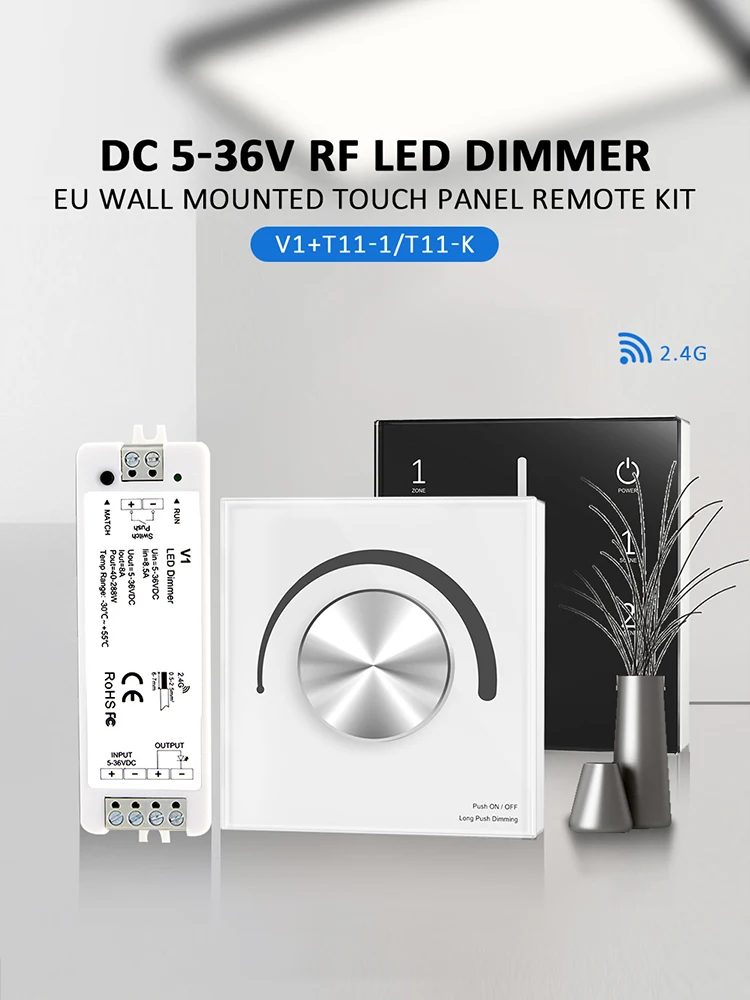

Mjjc-eu Dimmer de Parede para Única Cor Led Strip Smart Dimmer Tela do Painel de Toque Luz Regulável Controle Remoto rf 12v dc 24v 36v 5v 2.4g

R$ 47,86

Adicionado a lista de desejosRemovido da lista de desejos 0

Dimmers Acessórios de Iluminação

Opção de Compra e tempo de entrega

Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Ficha técnica do produto

Características Especificações
Características Touch Dimmer
Número do Modelo LED Touch Dimmer
Certificado Ccc, ce, emc, fcc, lvd
Material Plastic
Garantia 1 Year
Potência Máx. de Carga 288w
Nome da Marca Mjjcled
Origem CN (origem)
Tipo de Item Dimmers
Working Voltage OF V1 5-36v DC
Working Voltage OF Touch Switch 100-240v AC
Output Signal 2.4g
Feature 1 Touch Switch FOR LED Strips
Feature 2 Touch Switch Glass Panel
Feature 3 LED Strip Touch Dimmer
Feature 4 Dimmer 12V
Feature 5 LED Dimmer 24V
Feature 6 LED Dimmer 36V
Remote Touch Panel


Espaço reservado

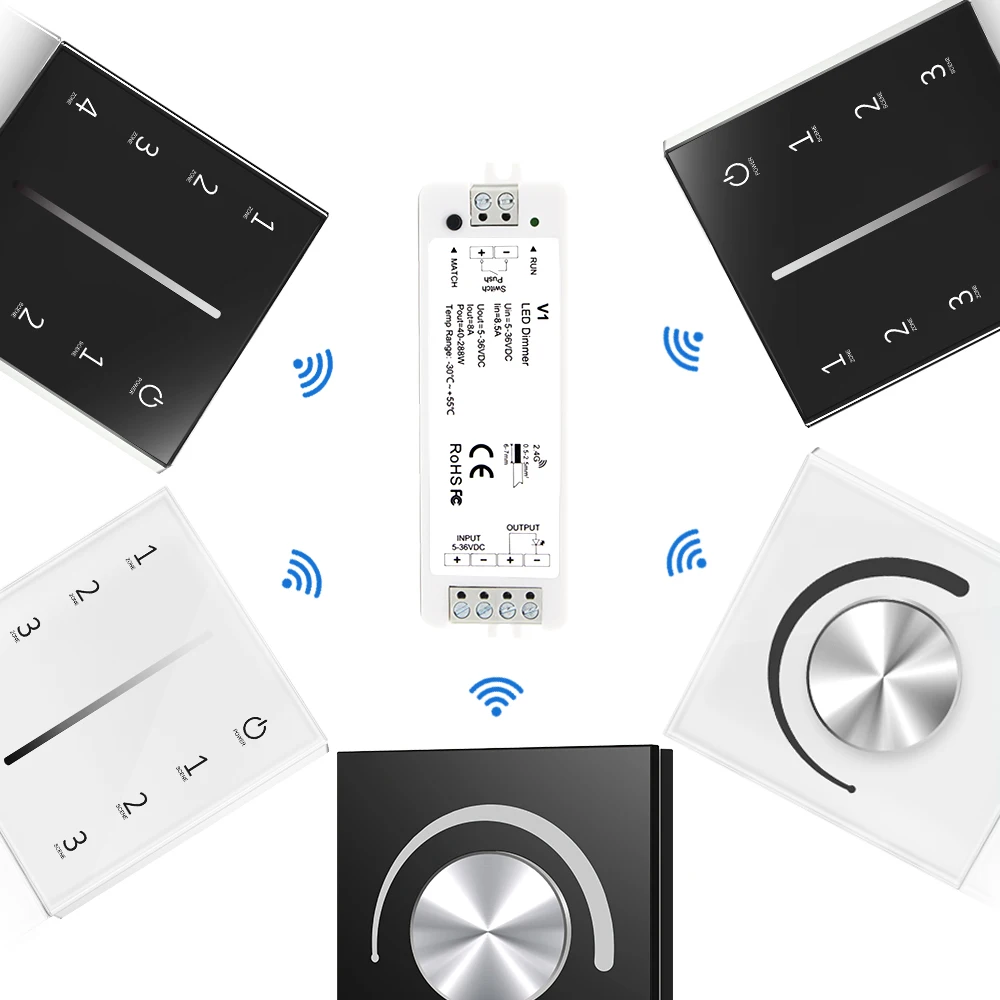

1. Mjjc-eu Dimmer de Parede para Única Cor

High Quality Luzes e Iluminação

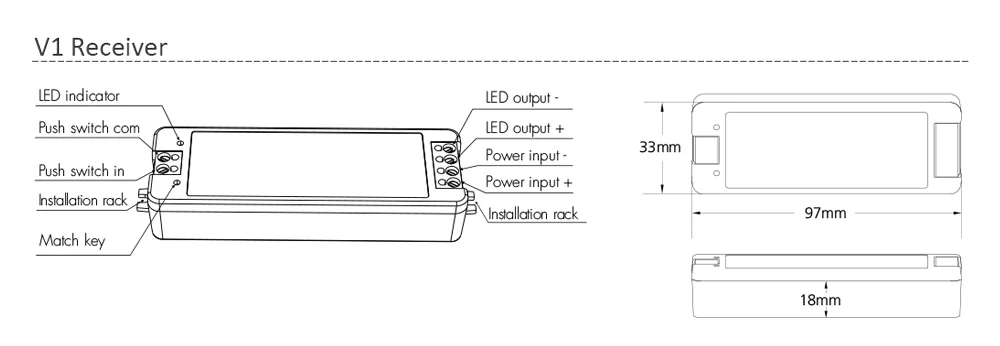

Features of V1 LED Dimmer:

? 4096 levels 0-100% dimming smoothly without any flash.
? Match with our 2.4G single zone or multiple zone dimming remote control.
? One RF controller accept up to 10 remote control.
? Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
? Synchronize on multiple number of controllers.
? Connect with external push switch to achieve on/off and 0-100% dimming function.
? Over-heat / Over-load / Short circuit protection, recover automatically.

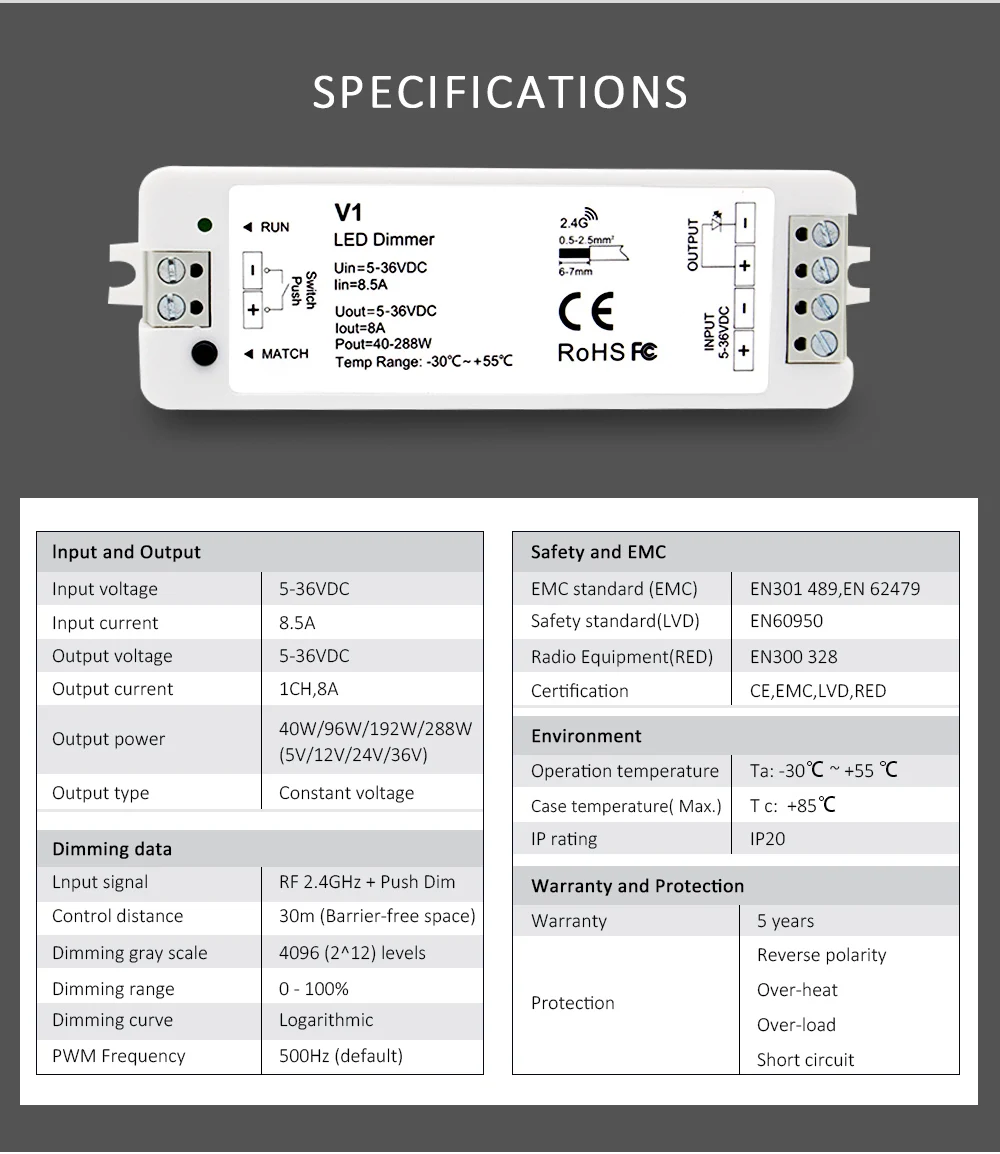

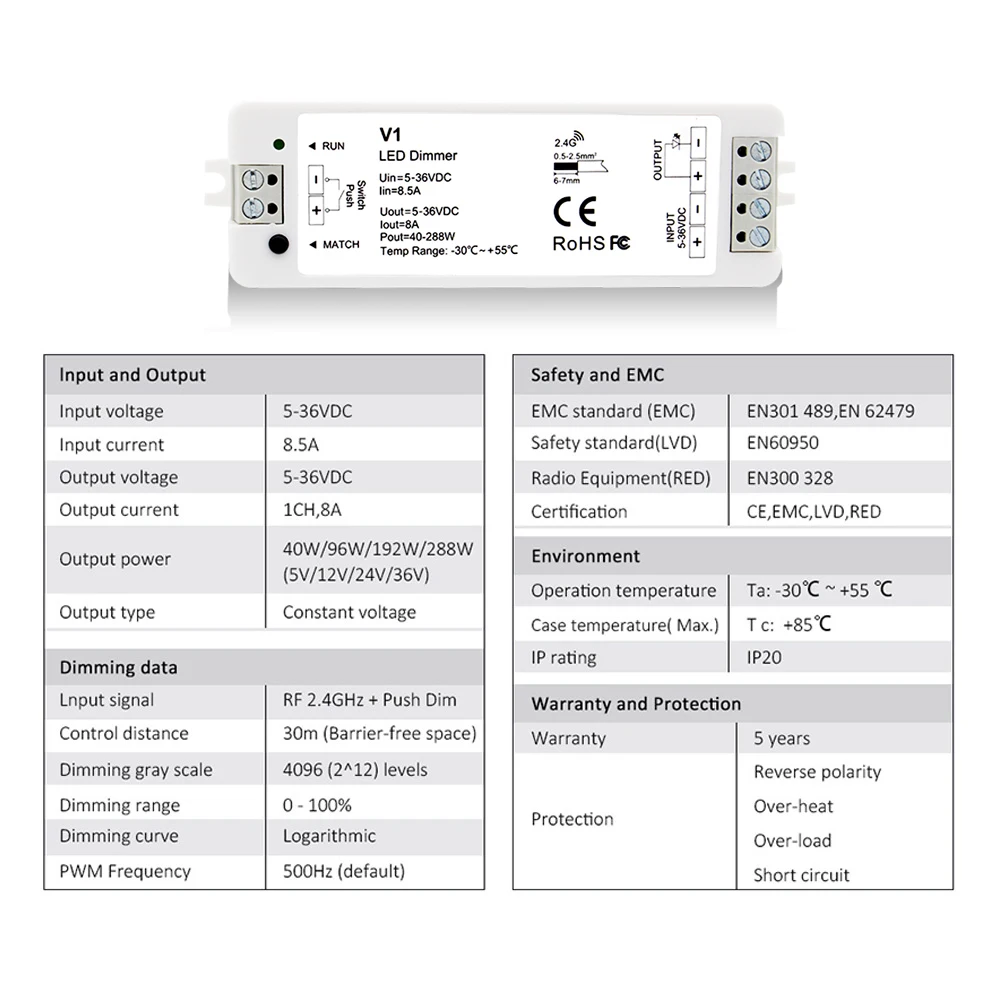

Technical Parameters:

? Input Voltage: 5-36V DC
? Input Voltage: 5-36V DC
? Output Current: 8A 1Channel
? Input signal: RF 2.4GHz + Push Dimmer
? Dimming range: 0 -100%
? PWM Frequency: 500Hz (default)

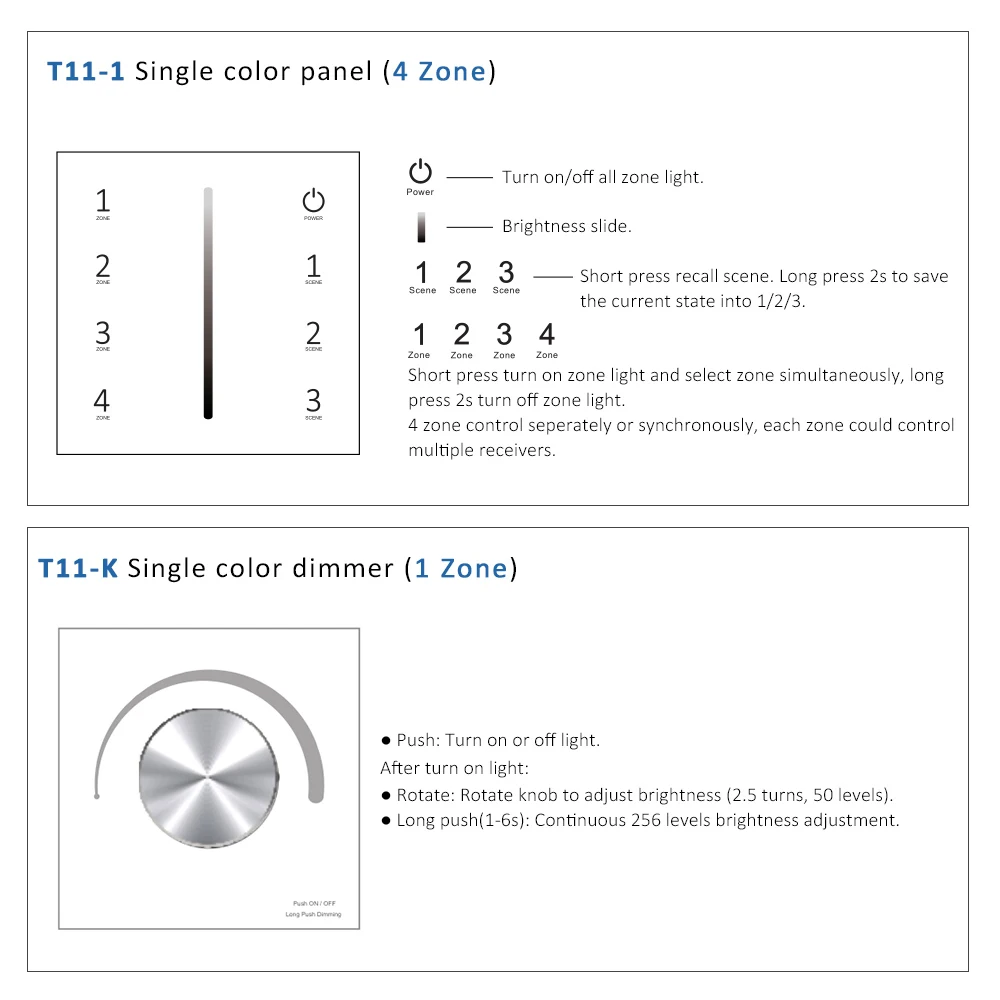

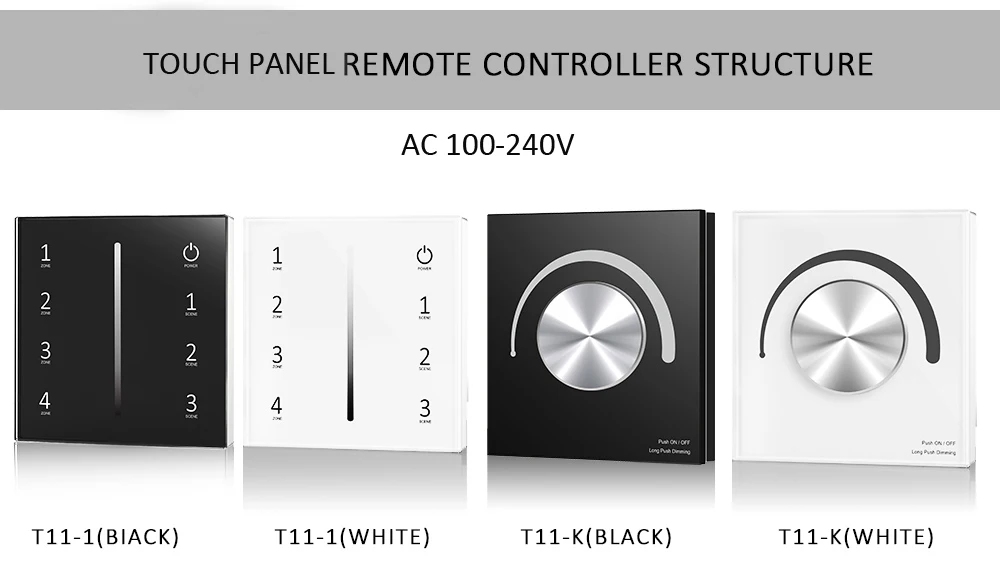

Features of Touch Panel Remote:

(MJJCLED-T11-1/T11-K)
? Ultra sensitive high strength glass touch e rotary panel with touch color slide in the middle and backlighting.
? Smooth and accurate color adjustment by touching the color slide.
? Touch keys with LED indicator.
? White e Black glass panel available.

Match Remote Control:

End user must be pair the remote to the receiver before using,the steps as follows:

*** Match:
Turn on light, turn off, immediately press the On/Off key of the panel for 5s, then press any zone key of the RF remote within 5s.

The LED indicator fast flash 3 times
means match is successful.

*** Delete:
Turn on light, turn off, immediately press the On/Off key of the panel for 10s to delete all match,

The LED indicator fast flash 6 times
means all matched remotes were deleted.

Main Functions:

One V1 dimmer receiver can be controlled by max 10 pieces remote within 30m distance,the remote is 2.4G RF wireless control.

2. Cheap Dimmers

Luzes e Iluminação

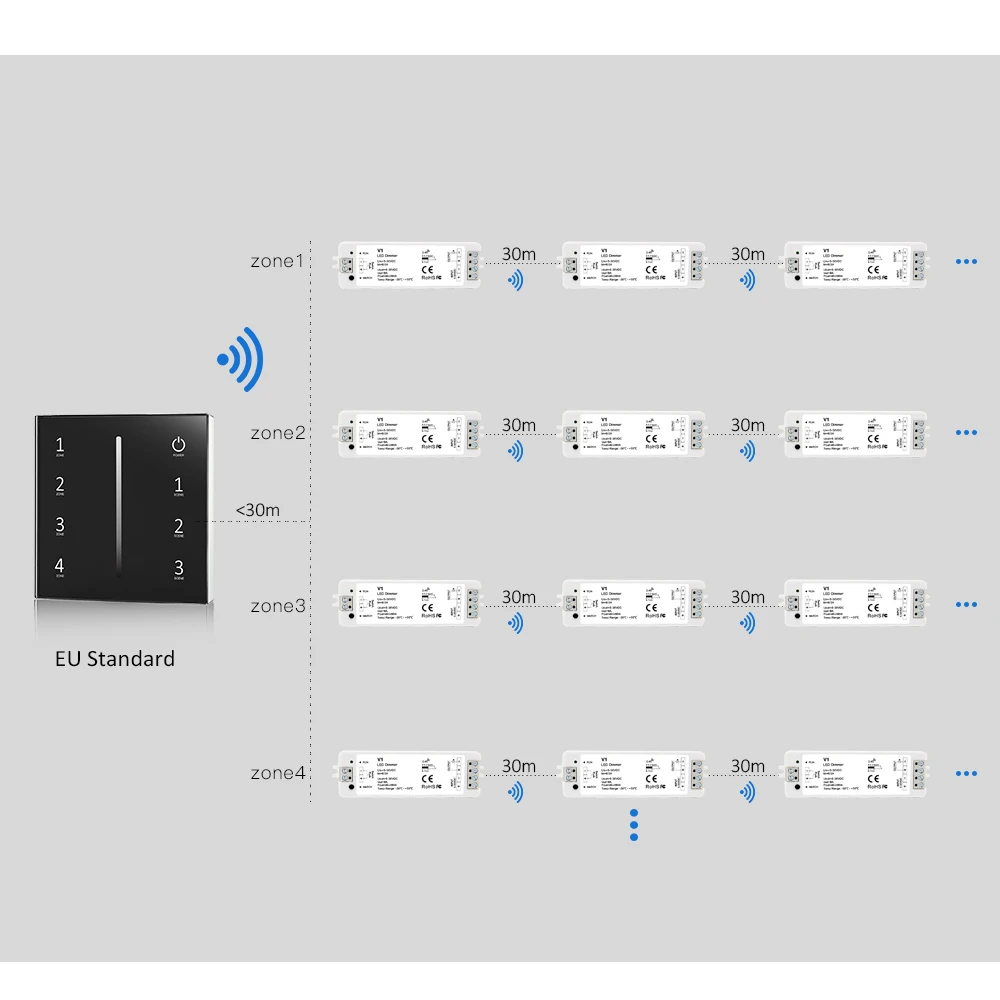

Auto-transmitting:

One V1 dimmer receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be limitless.

Auto-synchronization:

Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.

Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications

that receiver placements should be no further apart than15m.

? MJJCLED-T11-K can only control all zones working synchronously
? MJJCLED-T11-1 can control all zones working synchronously e Indepedently

3. de Toque Luz Regulável Controle Remoto rf 12v dc 24v 36v 5v 2.4g

LED Strip, Smart Dimmer, tela do painel

4. Mjjc-eu Dimmer de Parede para Única Cor

High Quality Luzes e Iluminação

5. Cheap Dimmers

Luzes e Iluminação

6. de Toque Luz Regulável Controle Remoto rf 12v dc 24v 36v 5v 2.4g

LED Strip, Smart Dimmer, tela do painel

7. Mjjc-eu Dimmer de Parede para Única Cor

High Quality Luzes e Iluminação

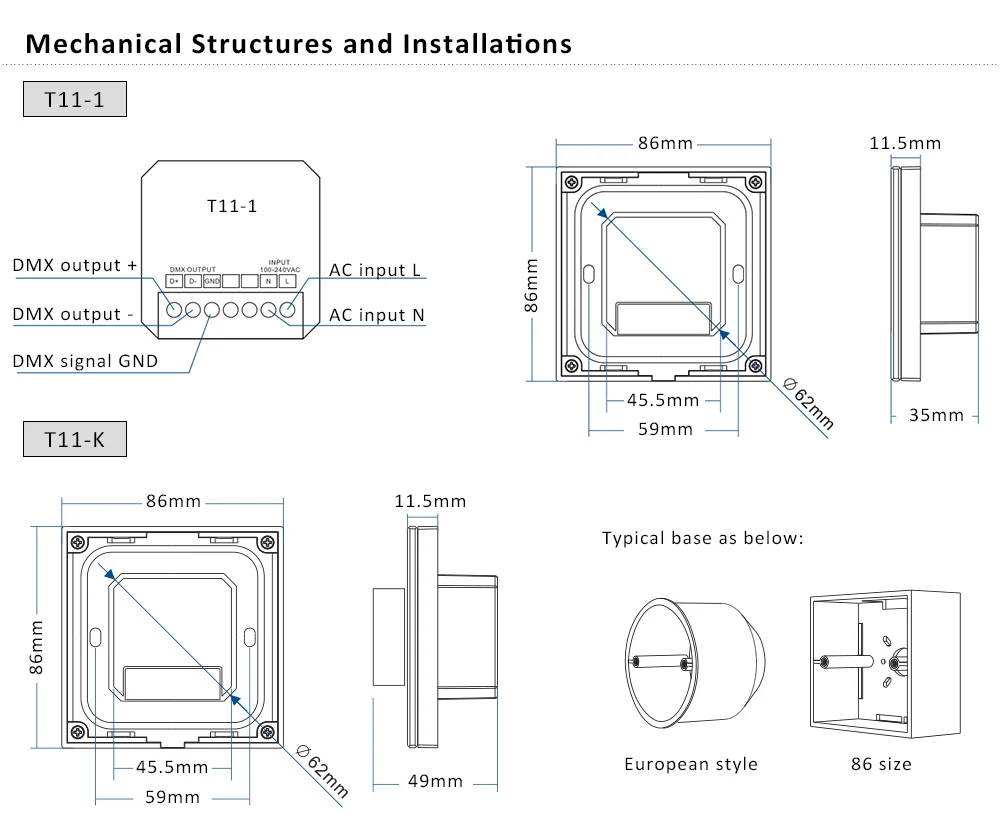

The size is EU standard design.

8. Cheap Dimmers

Luzes e Iluminação

9. de Toque Luz Regulável Controle Remoto rf 12v dc 24v 36v 5v 2.4g

LED Strip, Smart Dimmer, tela do painel

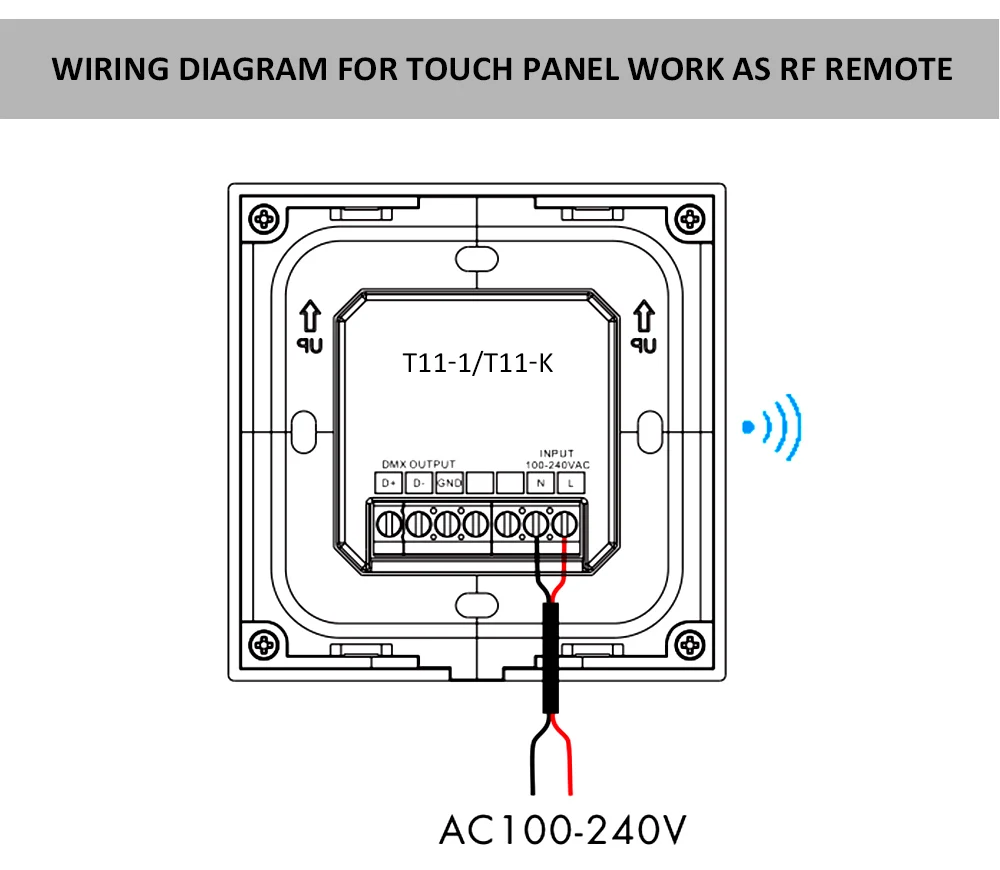

The touch panel remote control is only high voltage input, directly connect to AC 100-240V (L.N).

Work as a RF wireless wall panel remote.

10. Mjjc-eu Dimmer de Parede para Única Cor

High Quality Luzes e Iluminação

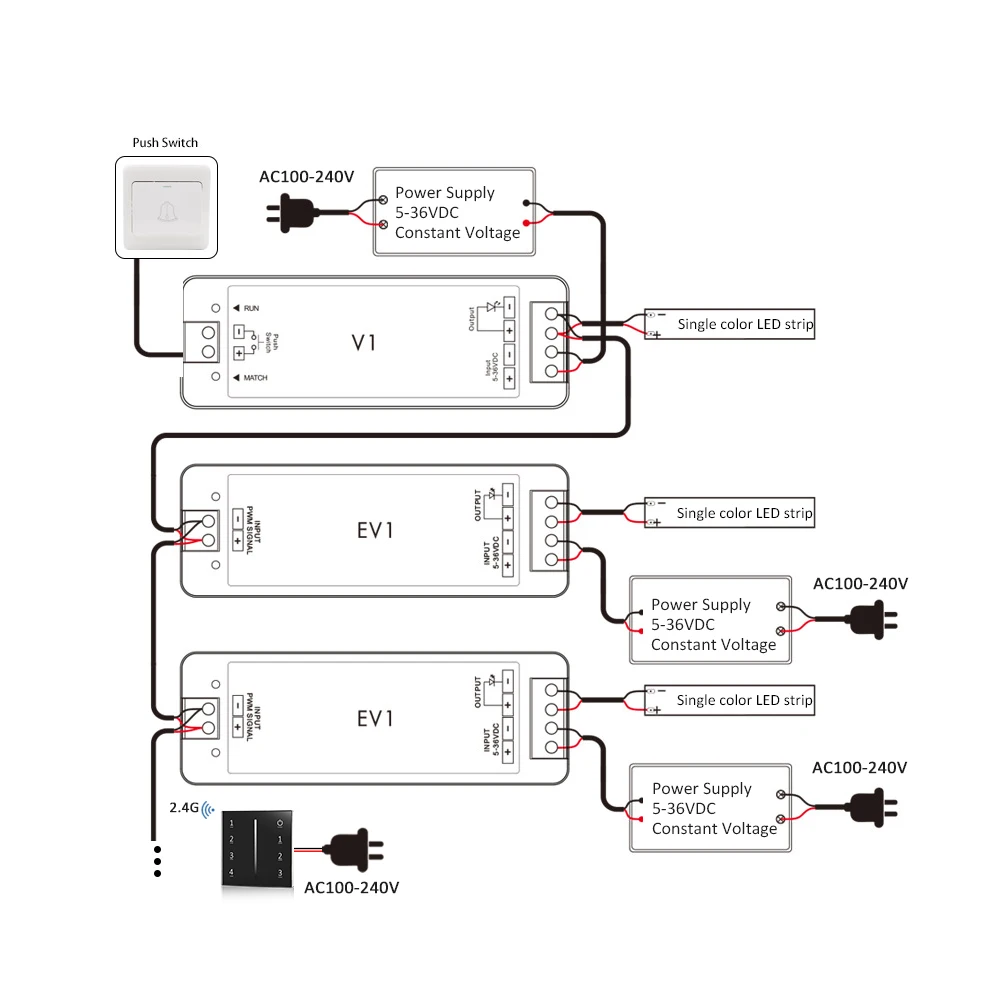

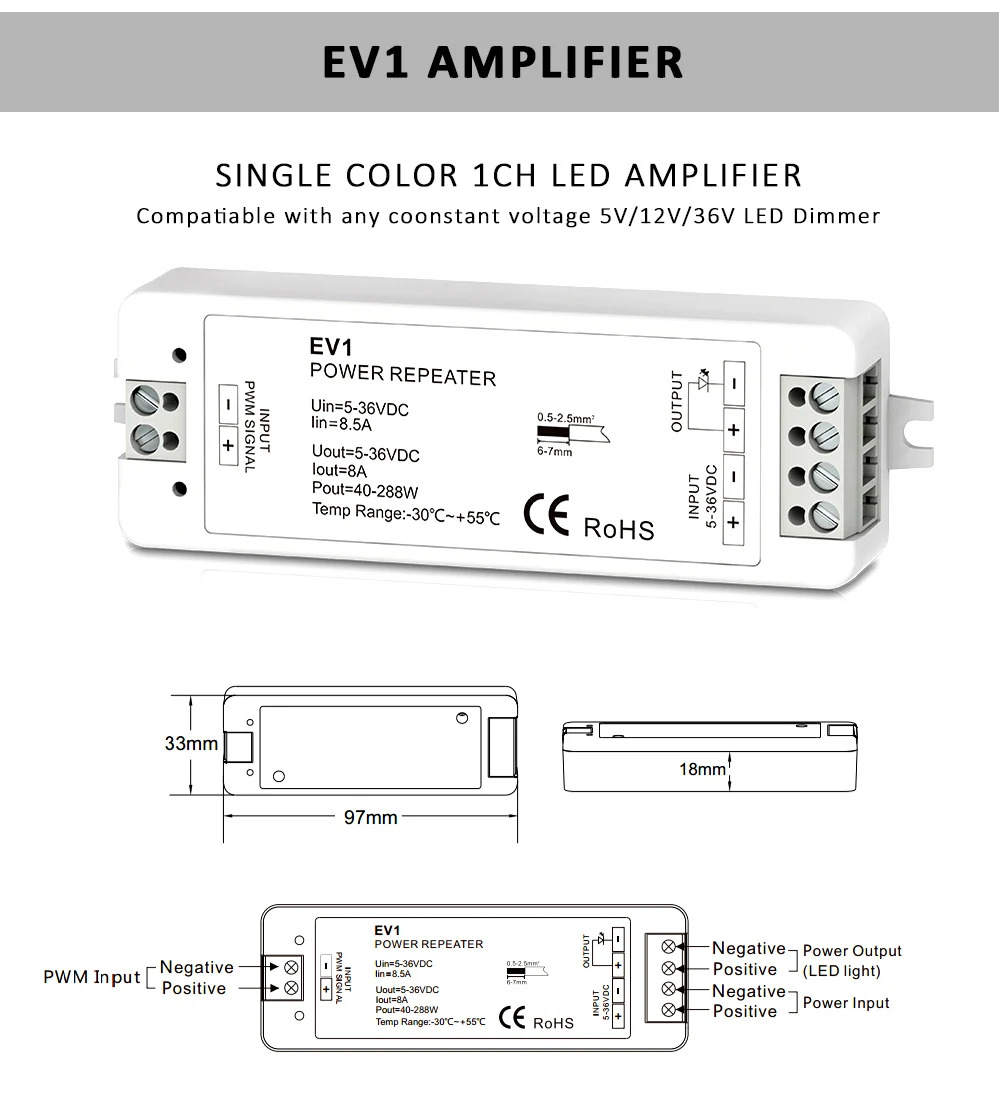

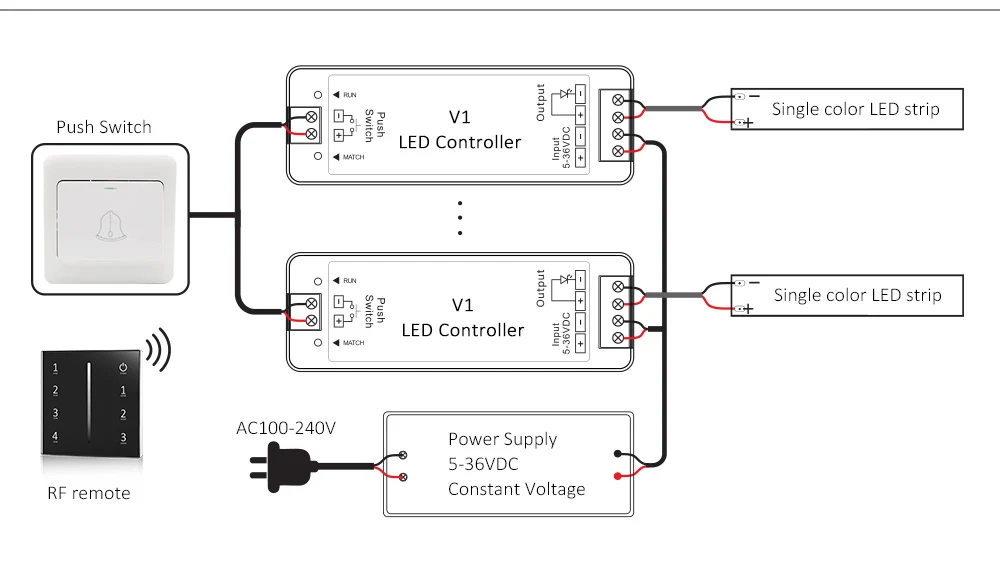

If you want to connect longer led strip light,please kindly read the following connection diagram.

11. Cheap Dimmers

Luzes e Iluminação

12. de Toque Luz Regulável Controle Remoto rf 12v dc 24v 36v 5v 2.4g

LED Strip, Smart Dimmer, tela do painel

13. Mjjc-eu Dimmer de Parede para Única Cor

High Quality Luzes e Iluminação

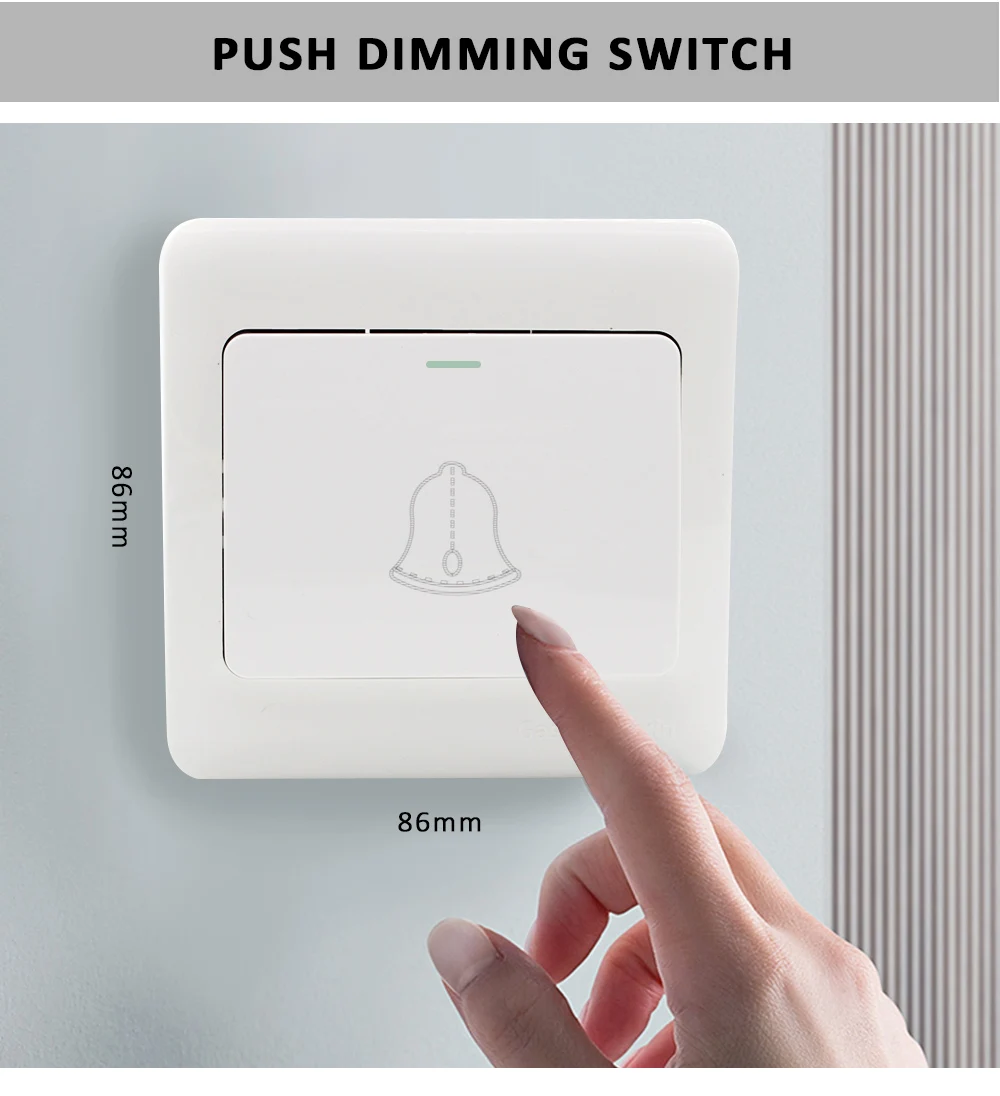

Push Dimming Switch:

You can also add a push switch to realize dimming.

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

? Short press:
Turn on or off light.
? Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction.
? Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
? Synchronization:
If more than one controller are connected to the same push switch, do a long press for more than 10s,then the system is synchronized and all lights in the group dim up to 100%.

This means there is no need for any additional synchrony wire in larger installations.

We recommend the number of controllers connected to a push switch does not exceed 25 pieces,

The maximum length of the wires from push to controller should be no more than 20 meters.
