Faixas de Led para Retroiluminação de tv Bandas de tv Led para Tamanhos Dexp H32b7000e 32

R$ 54,45

Adicionado a lista de desejosRemovido da lista de desejos 0
SKU: 1005002809571854 Categorias: , ,

Luzes LED Para BAR

Opção de Compra e tempo de entrega

Aviso Para mais informações sobre esse produto com preço promocionais e forma de entrega, click no botão abaixo e visite o portal da loja

Ficha técnica do produto

Características Especificações
Número do Modelo Cx315m06 Tlj32c7led 32a3200 H32b7000c H32b7400c H32b3200cd
Certificado CE
Nome da Marca Abay
Origem CN (origem)
Goods Status Brand New, Consistent With THE Original
Material Aluminum Circuit Board, High Quality LED Lamp Bead, HD Lens
Applicable TV Brand ANS Size FOR Dexp 32 Inch
Applicable Television Models H32b7000e
LED Illumination Strip Number Hl-00320a28-0701s-04 A3 A6 B0 D3
LED Rulers Straps 180.dt0-32d900-0h 180.dt0-321800-2h
LED Bands Line Code Zdcx32d07-zc14fg-05 2015-01-29 Pn:303cx320031
Screen Model Cx315m06 Tlj32c7led
LED Array Matrix Cx315dledm Le-3228a Cx315dledm Le-3228a


Things to know before buying

The TV model can only be used as a reference, and the TV model may not be accurate. Because the same TV (but different production batches or different production areas) may use different light bars. You can buy it only after you open the TV shell and confirm that the backlight strip’s model code, connector shape, length of the strip and other parameters are consistent with what we provide, otherwise we will not be responsible for this if you only base on the TV model. This is the particularity of the electronic accessories industry, I hope customers can understand.

TV’s LED Backlight Strips For DEXP H32B7000E 32& LED TV Bars HL-00320A28-0701S-04 B0 Bands Rulers ZDCX32D07-ZC14FG-05 Array Tape

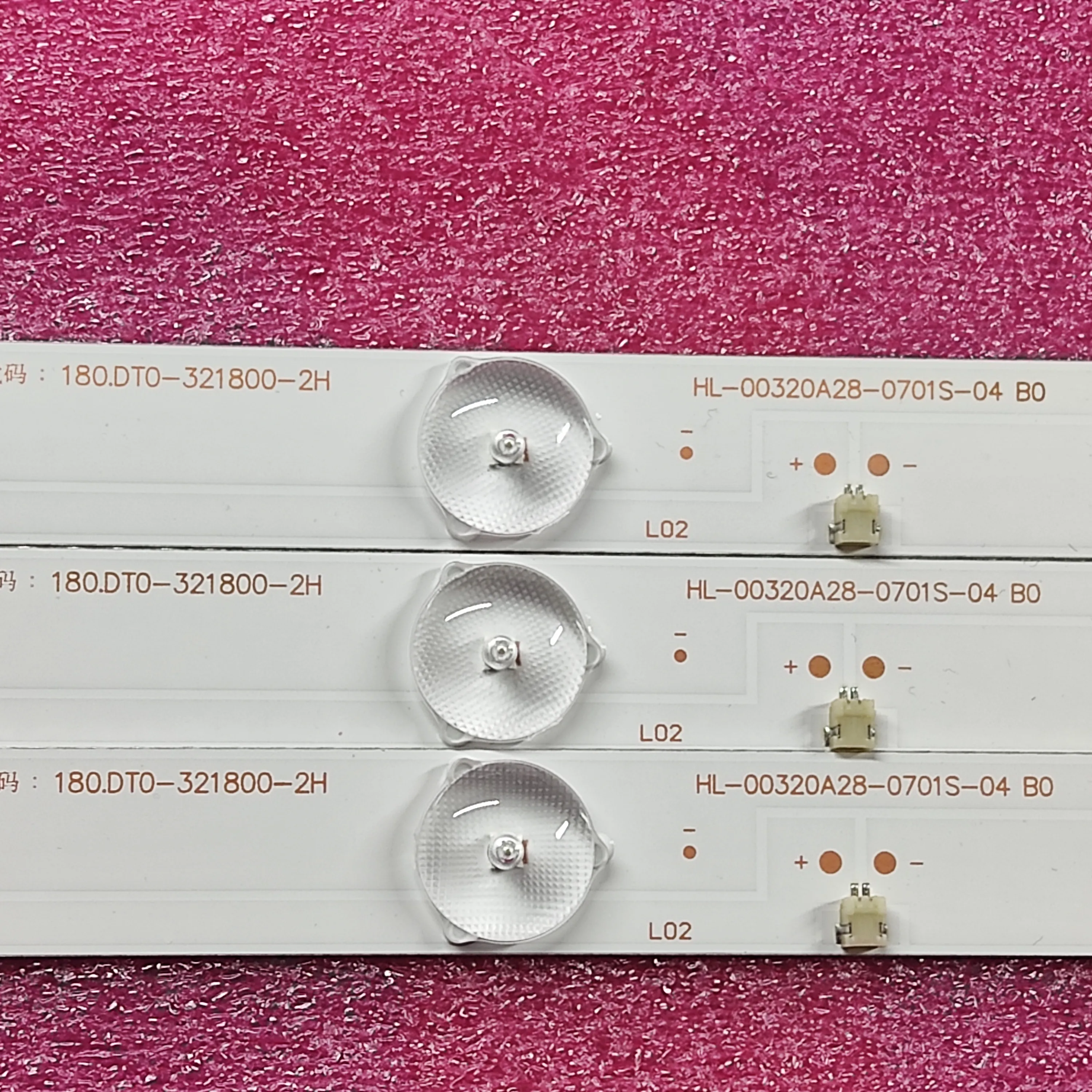

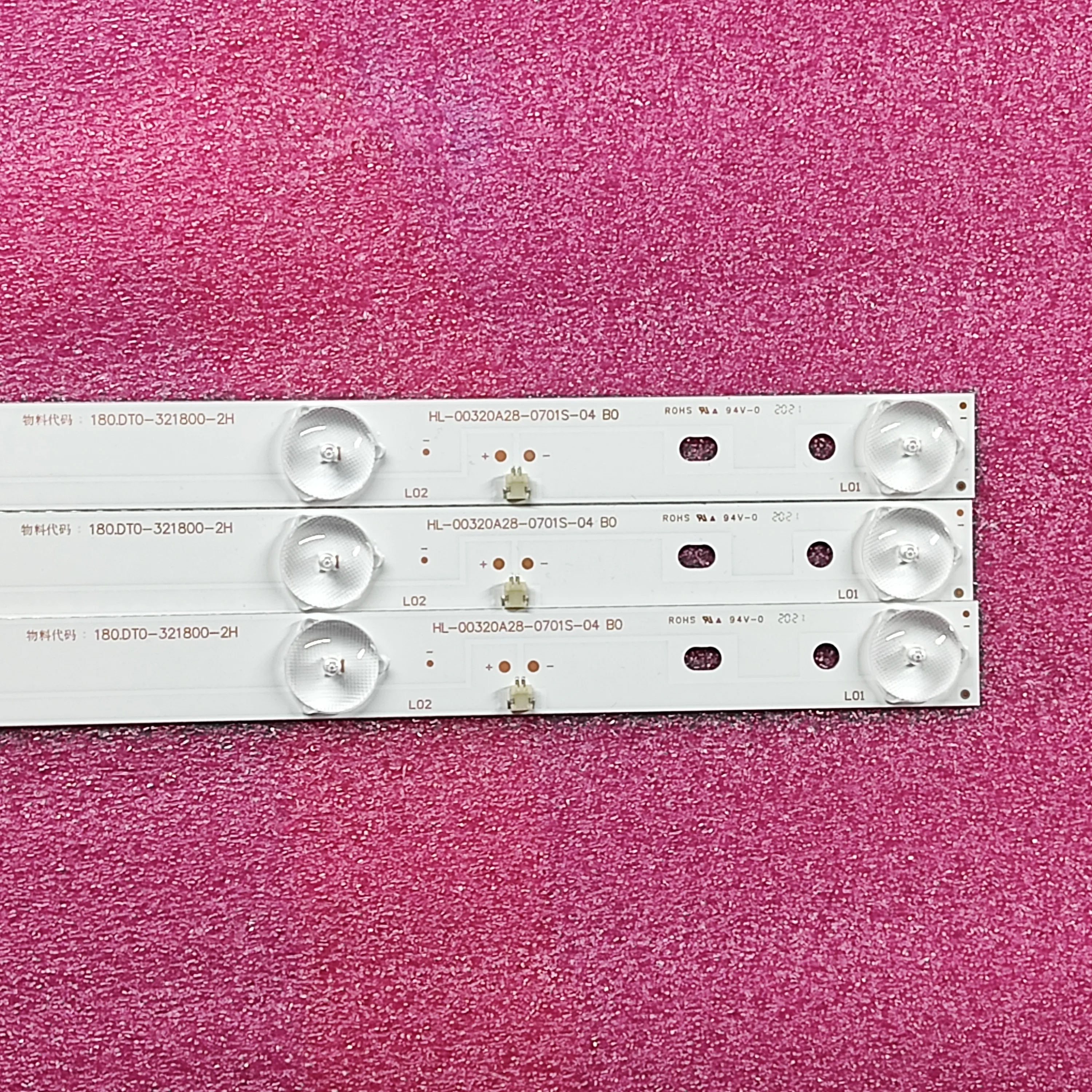

Number on the light bar

If you have already taken apart your TV, we recommend that you compare the numbers on the light bar with what we have provided, and if they are consistent, you could purchase it. If inconsistent, you could get help by contacting us. Because the same light bar may have different Strip number:
ZDCX32D07-ZC14FG-05 2015-01-29
PN:303CX320031
CX315M06 TLJ32C7LED
HL-00320A28-0701S-04 A6
HL-00320A28-0701S-04 D3
HL-00320A28-0701S-04 B0
HL-00320A28-0701S-04 A3
180.DT0-32D900-0H
180.DT0-321800-2H

Applicable TV model

If you haven’t opened your TV yet, you could compare your TV model to the TV model we offer. If they are the same, you could buy it, if you can’t find your TV model, you could get help by contacting us. But we recommend that you compare the code of backlight strip, it will be more accurate.
The following are the TV models for which the backlight bar is applicable For DEXP H32B7000E

Backlight strip production information

1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original, brightness up to 700 nits

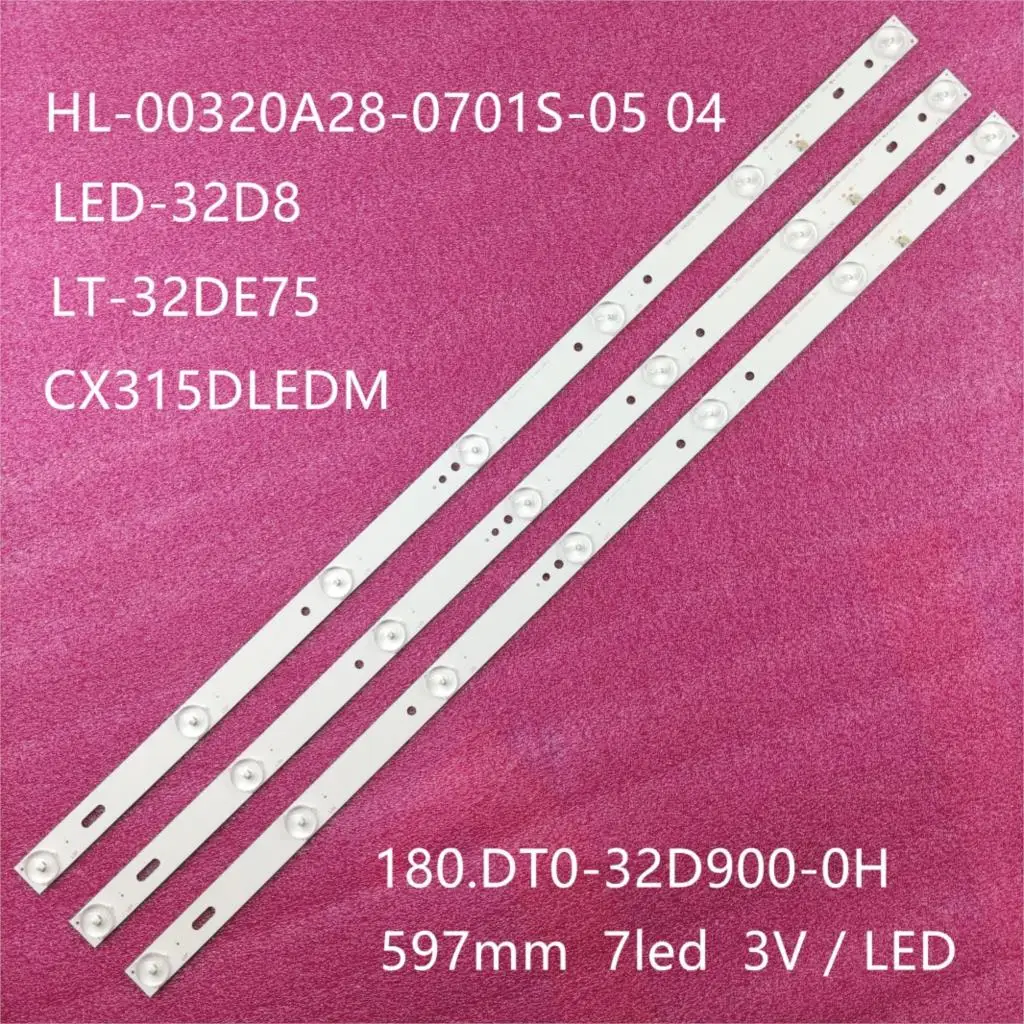

4.Product length:
598 mm( length) * 17 mm (width) * 1.0 mm (height) , 7 LED Lamps
5.Single LED lamp voltage: 3V,

Packaging and logistics

Package: PVC Plastic pipe or cardboard packaging (it will be safer during transportation)
Product contains: 3 pieces / Set (1 set for 1 TV)
Logistics information could be tracked

Precautions

1.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.

2.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.

3.We recommend that lowering your TV’s &brightness& or &backlight& setting by 20-25% before installation to reduce risk of repeat failure.

4.Please do not sign the goods if the package is damaged.

5.In order to avoid your loss, please contact us if you have problems during the installation process or other problems with the goods.

Service and FAQs

Q1: What are the common symptoms of LED Backlight failure

A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.
It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!

Q2: How do I test my LED Bars

A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use

Q3: What should I do if my product is not suitable for my monitor / TV

A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost

Q4: Do you offer trade discount

A4:Yes, please contact us about trade benifits

Q5: What should I do if the goods are damaged during the warranty period

A5: In the case of non-human damage, we would send you new parts for free. If it is caused by human reasons, we are not responsible for the warranty, but we could offer you a discount if you are willing to buy again.
